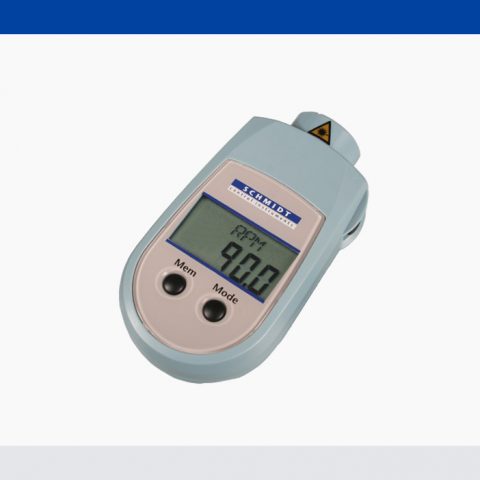

SCHMIDT PH-200L 转速表 (6 - 99999 rpm)

Measuring range (Floating decimal point):

+ Revolution (non-contact): 6 – 99999 rpm

+ Revolution (counter): 1 – 99999 rev

Accuracy:

+ Revolution: 6 – 599 ±1 rpm ±1 Digit; 600 – 99999 rpm ±0.01 % of readings ±1 Digit

Measuring units:

+ Revolution: rpm

+ Total revolution (counter): rev

Memory: 14 readings (10 readings, MAX, MIN, mean and last) are stored for 5 minutes after last use

Laser, class 2: Output<1 mW, wave length 760 nm, max. measuring distance 2 m

Resolution: Length: 0.02362 m/Impulse, revolution: 1 Impulse/revolution

Display: 5 digit LCD 12 mm high

Display update: 1 s

Over range indicator: ”OVR” flashes at the display

Auto power off:  After 5 min of non-use

Power supply:  Battery 3 x 1.5 V Type AA, (approx. 50 h continuous use)

Low battery indicator:  ”LO BAT” flashes at the display

Temperature range:  5 – 45 °C

Air humidity:  85 % RH, max.

Housing:  Polyamide, fiber-reinforced

Dimensions: 115 x 64 x 31 mm (LxWxH)

Weight, net (gross):  Approx. 180 g (400 g)
