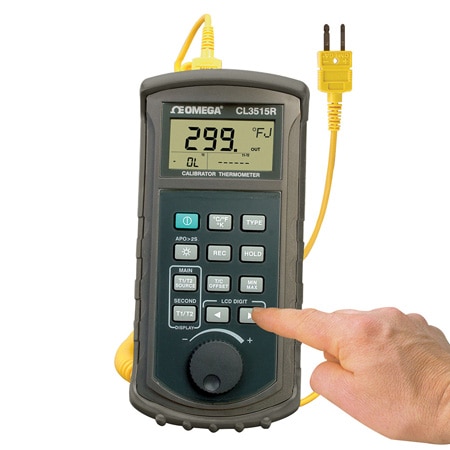

OMEGA CL3515R Rugged 11 Thermocouple type & mV Calibrator Thermometer

Width: 91 mm

Height: 192 mm

Length: 52.5 mm

Weight: 320 g

Accuracy: ± 0.05 %

Battery life: 17 hr

Display Type: LCD

Accuracy Note: ± (0.05% of reading + 0.5 °C)

Supply Voltage: 9 Vdc

Millivolt Range: -25 to 75 mV

Display Type Note: 4-digit LCD with maxreading of 19999

Thermocouple Type: J, K, T, E, R, S, B, C, N, L, U

Number of Channels: 2

Type of RTD Signal: None

Milli Volt Accuracy: ± 0.025% + 1 digit

Additional Features 1: NIST Calibration Certificate

Electrical Connection: Miniature Female Thermocouple Connector

Milli Volt Resolution: 10 µV

Relative Humidity, Max: 0.7

Relative Humidity, Min: 0%

Temperature Coefficient: 0.1 times the applicable accuracy specification per °C from 0 to 18°C and 28 to 50°C (32 to 64°F and 82 to 122°F)

Storage Temperature Note: -20 to 60°C (-4 to 140°F ),<70%RH

Storage Temperature, Max: 60 °C

Storage Temperature, Min: -20 °C

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C

Temperature Measurement, Max: 2316 °C

Temperature Measurement, Min: 0 °C

Thermocouple Simulation Resolution Range: Thermocouple Simulation Range: Resolution: 0.1° (1° for R/S/B/C); Accuracy*: ± (0.3°C + 10 µV)
