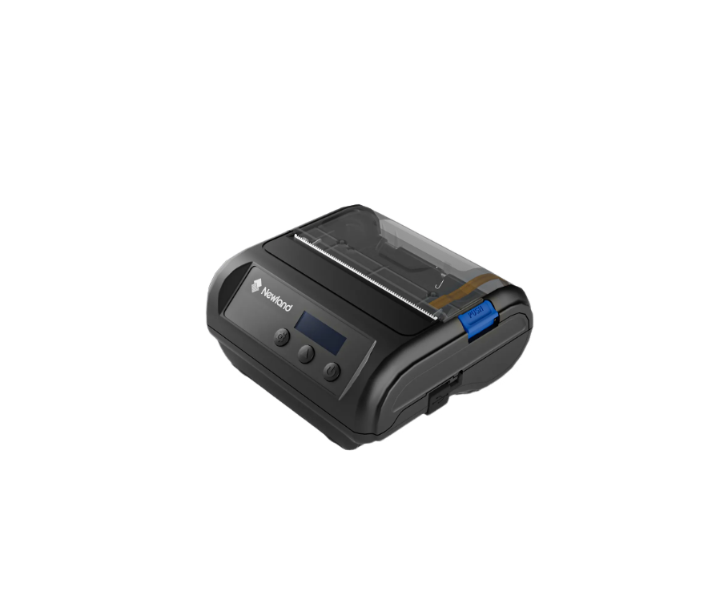

NEWLAND PP310 标签打印机 (203dpi x 203dpi)

Resolution: 203dpi x 203dpi

Printing: Direct Thermal

Max. Print Width: 72mm

Max. Print Speed: 76mm/s (receipt printing); 50mm/s (label printing)

Programming Language: ESC/POS, CPCL

Memory: FLASH: 4MB; SDRAM: 8MB

Interface: USB, Bluetooth 4.0

Sensor: Black Mark, Gap, Media Out sensing

Media

Media Type: Direct Thermal media, continuous receipt, black mark receipt, gap label

Media Roll Size: Max. outer diameter: 40mm, Max. width: 80mm

Media Thickness: Continuous receipt/black mark receipt: 0.06mm~0.10mm

Label: 0.06mm~0.16mm

Media Cutting: Tear off

Physical

Dimensions (L×W×H): 109mm(L)x105mm(W)x51mm(H)

Weight: 330g (with battery)

Power Adapter

Input: AC 100~240V, 50/60Hz; Output: DC 12V±0.6V, 1A

Battery

1400mAh Li-polymer Battery

Charging Time: 2.5-3 hours

Sealing: IP42 with waist bag

Drop: 1.5m

Reliability

Print head lifetime: 50Km(Standard test condition)

Characters/Graphics/Symbologies

Symbologies

1D(ESC/POS): UPC-A. UPC-E, JAN13 (EAN13), JAN 8 (EAN8), CODE39, ITF, CODABAR, CODE93, CODE128

2D(ESC/POS): PDF417, QRCODE, MAXICODE, GS1

1D(CPCL): UPC-A, UPC-E, JAN13 (EAN13), JAN8(EAN8), CODE39, CODE93, Interleaved 2 of 5, Interleaved 2 of 5 with checksum, CODE128, UCC EAN 128, CODABAR, MSI

2D(CPCL): PDF417, QR CODE,DM CODE.

Characters

Standard Font A (12X24), Font B (9X17), user-defined characters Kanji (24x24); support Chinese (2312 ), English (ASCII ), support Simplified Chinese ( 18030 or GBK ), traditional Chinese, English, Japanese, Korean (Optional), can download custom characters to FLASH or RAM

Graphics: Binary unformatted bitmap, HEX, BMP and IMG image files can be downloaded to FLASH, RAM
