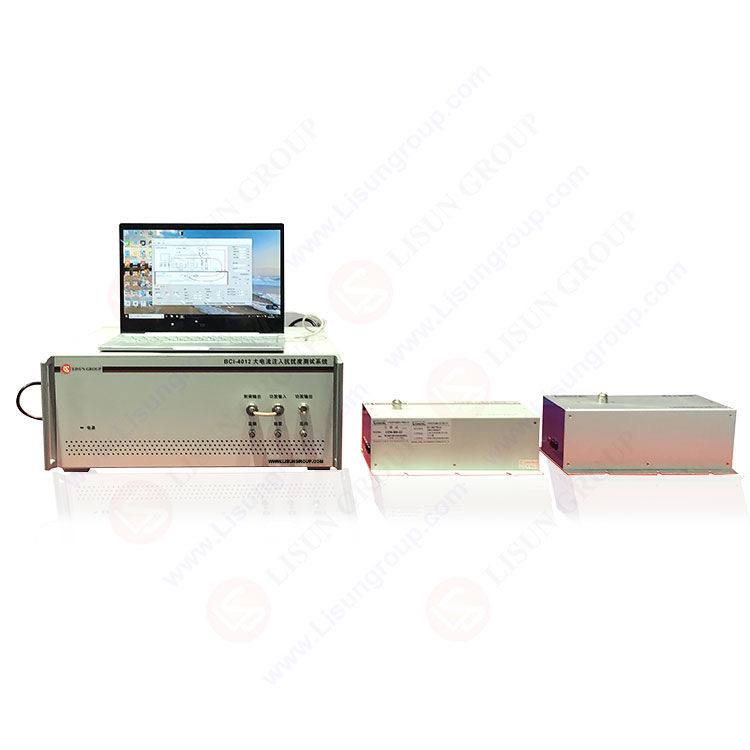

Lisun RFCI61000-4-6 RF Conducted Immunity Test System (150K～230M, 10V)
制造商: Lisun Model: RFCI61000-4-6 来源: China 保障: 12 Month - 联系
• Frequency range: 150K～230M;
• Calibration for continuous wave: 1V (120dBμ), 3V (130dBμ), 10V (140dBμ);
• 80% AM radio frequency modulation signal (modulation frequency is 1k) when testing;
• Frequency step: Segmentation step, specific steps as below: 150K～1M (10K), 1M~30M (1M) and 30M~230M (10M), the proportion step (1% ~ 100% adjustable);
• Dwell time: 1s ~ 120s (adjustable);
• Output power error: ±1dB;
System Configuration:
• Main Instrument: Programmable signal source and 20w linear power amplifier
• Attenuator: 50W/6dB (50Ω)
• Coupling/decoupling network: CDN (RFCI61000-4-6CDN) or EM (RFCI61000-4-6EM)
• Cable Jumper: One meter N-N (50Ω) and one USB
