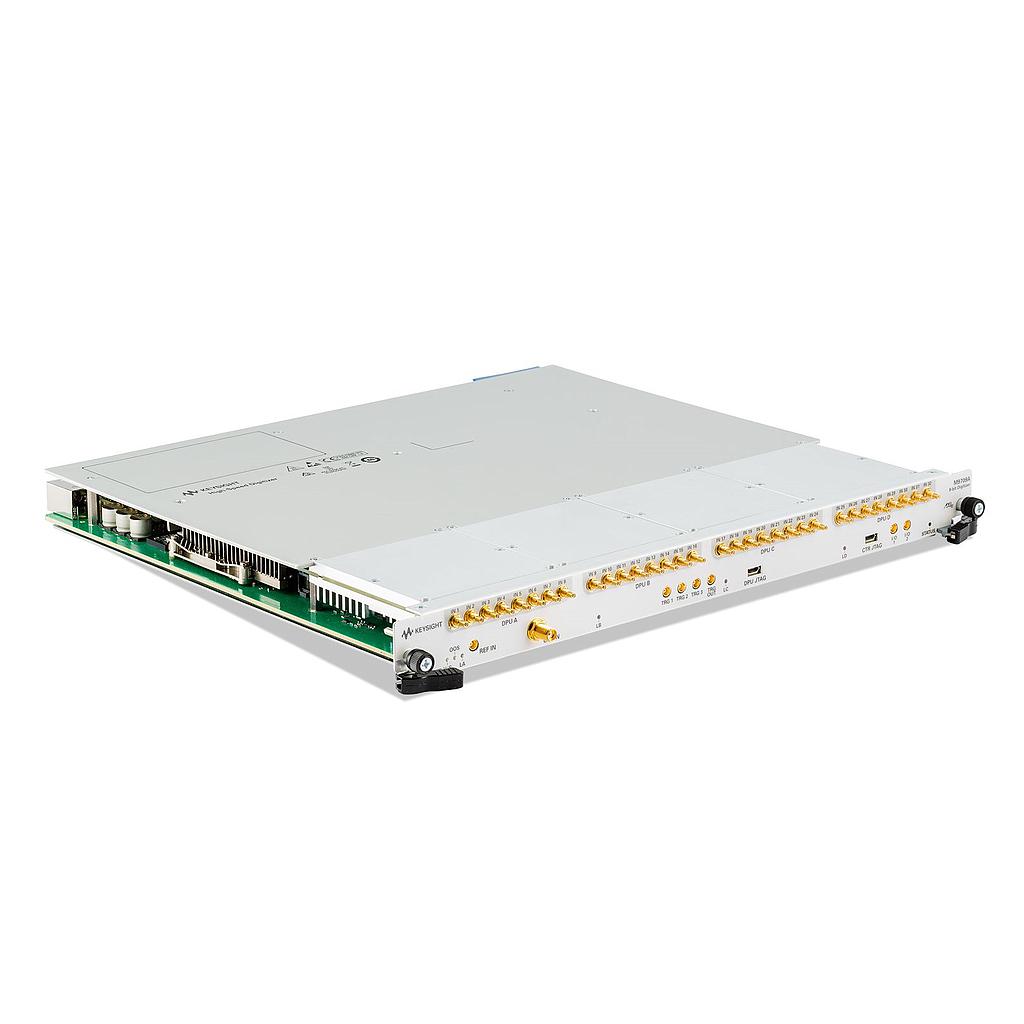

KEYSIGHT M9709A AXIe 高速数字化仪/DAQ (8-bit, 1 GS/s, 32-ch)
制造商: KEYSIGHT Model: M9709A 保障: 12 Month - 联系
ADC resolution: 8-bit
Number of channels: 32
Impedance: 50 Ω ± 2 %
Maximum input voltage ± 5 V
Sampling rate: 1 GS/s
Input frequency range: DC up to 500 MHz (with -F05 option)
Memory: Up to 16 GB (512 MSamples/ch)
Full scale ranges (FSR): 250 mV, 500 mV, 1 V, 2.5 V, and 5 V
Operating temperature range: 0 to +40°C
Non-operating temperature range: -40 to +70°C
Size: 30 mm W x 322.2 mm H x 280 mm D
Weight: 3.3 kg (7.27 lbs)
Operating system: Windows and Linux
