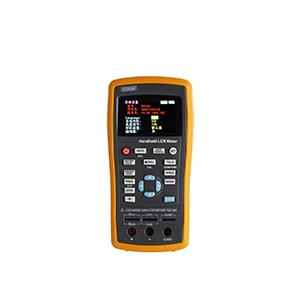

EAST TESTER ET1080A Digital LCR Meter (10kH; 0.6Vrms)

Measurement Parameter: Main parameter: L/C/R/Z; secondary parameter: X/D/Q/θ/ESR

Equivalent mode: Series, parallel

Mode of range: Manual, automatic

Measurement speed: Fast（4 times/s）, medium（2 times /s）, slow（1 times /s）

Configuration of the test terminal: 3-terminal, 5-terminal

Correction function: Short circuit, open circuit

Communication interface: Mini-USB（virtual serial port）

Frequency of test signal: 100Hz, 120Hz, 1kHz, 10kH

Level of test signal: 0.6Vrms

Output impedance: 100Ω

Highest accuracy (see accuracy indicators for details): Resistance: 0.25%; Capacitance: 0.4%

Electrolysis and capacitance mode: No

DCR mode: No

Internal bias: No

Scope of measurement:

L:0-2000H

C：0-20mF

R：0-20MΩ

Correction function: Open circuit correction

Screening function: The limit range can be set to 1%-50%, which is fixed at 1%,5%,10%,20%

Deviation measurement: The percentage of deviation between the nominal value of the component and the setting and display

Other: Adjust backlight brightness, Device USB, automatic shutdown time can be set

ACCESSORIES STANDARD

1,Mini-USB data Wires;

2, power adapter;

3, short circuit chip;

4, red&black rubber plug;

5, large capacity lithium battery

Optional Accessories: Kelvin test clip, SMD test clamp
