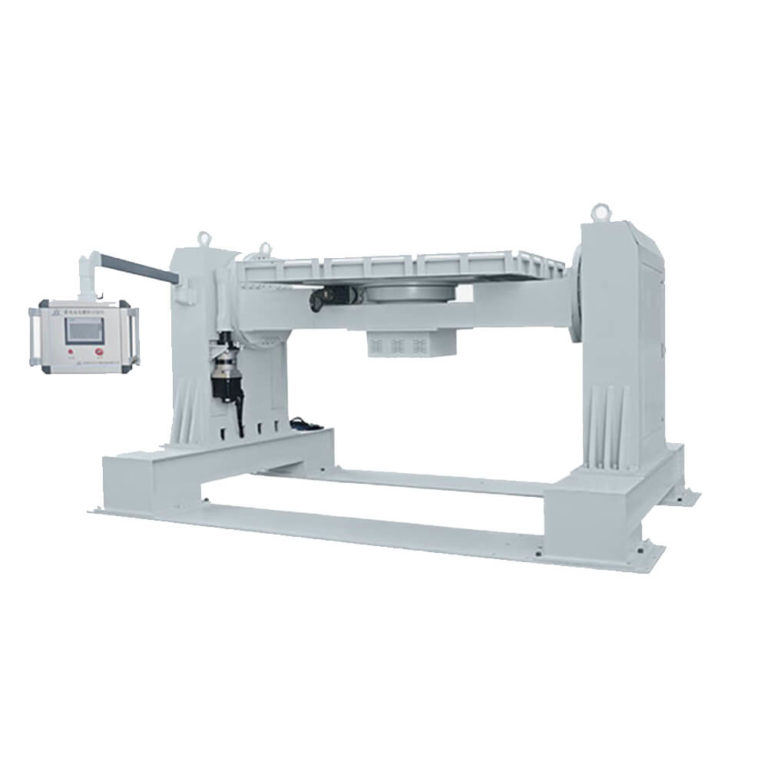

DGBell BE-8201-2500 电池组旋转测试装置 (-360 ° ~ + 360 °)

  • 制造商:DGBell
    Model: BE-8201-2500
  • 联系
    • 报价要求

Rotation Angle: -360°~+360°(adjustable)

Rotate Speed: 1°/s—12°/s adjustable

Rotate Direction: X/Y axis automatic switching

Max.Test Space: W2500 X D2000X H1000mm

Max. Test Load: 1000KG

Max.Overall Dimension: W4650 X D2780X H2400mm

Rotate Plate Dimension: W2500 X D2000X H100mm

Equipment Weight: Approx 5 Tons

Control Mode: PLC touch screen control + PC remote control (Dual Control)

Running mode:

1. Programming mode: adopt fully automatic design, after the battery pack is placed on the rotating plate, press the start button. The whole test will be Auto-completed according to the program. The rotation of X/Y axis can be switched automatically without manual adjustment.

2.Fix Value mode.

Workbench: The rotation of  X/Y axis can be switched automatically.

Power Supply: AC 220V 9KW

Other Requirement:

Video Monitoring System

Safety Protection System for Close Operation

Working Status Display System.
