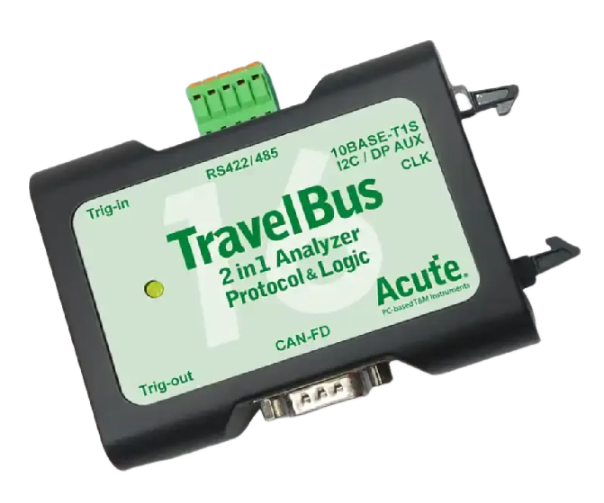

Acute TB3016B TravelBus 逻辑分析器 (25 channels; 200MHz)

Power Source: USB bus-power (+5V)

Static Power Consumption: 0.75W

Max Power Consumption: < 2.5W

Hardware Interface: USB 3.0

Timing Analysis (Asynchronous，Max. Sample Rate): 800 MHz

State Clock Rate (Synchronous，External Clock): 200 MHz

Storage: Transitional Storage

Channels: 25

4GHz Timing [Available Chs] - Memory per Ch

Input impedance: 200KΩ // <5pF

Max. (Non-destructive): ±40V DC, 15Vpp AC

Input sensitivity: 0.5Vpp @150MHz

Threshold group: 2 (ch0~7, ch8~15 & clk0)

Threshold range: ±6V

Threshold resolution: 50mV

Threshold accuracy: ±100mV + 5%*Vth

Trigger resolution: 1.25 ns

Trigger types: Channel, Pattern, Single, Width, Time-out, External

Protocol Trigger:

BiSS-C, CAN2.0B, CAN-FD, DALI2.0, DP_Aux, HID over I²C, I²C, I²S, LIN2.2, MDIO, MIPI I3C 1.1, Modbus, PMBus, Profibus, PWM, RS422, RS485, SENT, SMBus, SPI, UART (RS232), USB PD 3, USB1.1

Protocol Analyzer:

BiSS-C, CAN2.0B, CAN-FD, DALI2.0, DP_Aux, HID over I²C, I²C, I²S, LIN2.2, MDIO, MIPI I3C 1.1, Modbus, PMBus, Profibus, PWM, RS422, RS485, SMBus, SPI, UART (RS232), USB PD 3, USB1.1
