THCK TSTC 444E – Thermal Shock Test Chamber (-40℃ ~ 100℃, 64 L) | EMIN.COM.LA

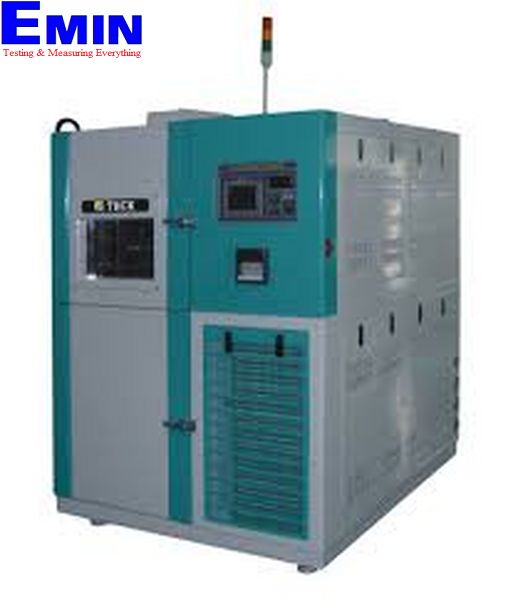

THCK TSTC 444E – Thermal Shock Test Chamber (-40℃ ~ 100℃, 64 L)

Name: THCK TSTC 444E – Thermal Shock Test Chamber (-40℃ ~ 100℃, 64 L)
Brand: THCK

ຜູ້ຜະລິດTHCK(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelTSTC 444E

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Manufacture: THCK
Made in Korea
- Basket Size: 400×400×400(64Liters))
- Real Using Temperature: -40℃ ~ 100℃
- Test Method: 2 Zones Elevator Air Cylinder
- Temperature Heating Rate (20℃~120℃): More than 2℃ / 1 minute
- Temperature Descent Rate (20℃~-60℃): More than 1℃ / 1 minute
- High & Low Chamber Temperature Range: High Chamber: 60℃ ~ 120℃ Low Chamber: -55℃ ~ 25℃
- Internal Material: Stainless Steel SUS 304 1.2mm
- External Material: SS41 1.6mm Powder Coated Steel Plate
- High Chamber Internal Size: 700 × 700 × 800 mm
- Low Chamber Internal Size: 700 × 700 × 850 mm
- External Size: 1,450 × 1,550 × 2,150 mm
- Controller: Model TS 500 HANYOUNG NUXTS 500 Color LCD Screen(Touch Panel Type), 240Patterns(Pattern Kinds 10),Digital Input 16 Contacts, Digital Output 24 Contacts, Possible to remote control through Communication(RS232 & RS485), MADE IN KOREA
- Recorder: Model SR 10006 (option) 6 Channels YOKOGAWA ELECTRIC CORPORATION, MADE IN JAPAN
- Refrigerator & Refrigerant: COPELAND Scroll Compressors, MADE IN U.S.A. Refrigerants: R-22a, R-23a
Low temp. : 2HP × 1, 2HP × 1
- Refrigeration Method: Mechanical Compression Refrigeration Type
- Safety Device: Overheating Protector, Earth Leakage Breaker, Fan Motor Overload Protector, Refrigerator, Overload Protector, Refrigerator High & Low Pressure Switch, Protection Fuse
- Convenient Specifications: Viewing Window: (W × D) 380mm × 380mm, Thickness: 38mm
Chamber Shelf (SUS 304 Hole Punched Plate) 2eas
- Power Supply (Customers Request): AC 380VOLTS, 3PHASES,60Hz(or50Hz) /15Kw

THERMAL SHOCK TEST CHAMBER

	THCK–TSTC 333E	THCK–TSTC 444E	THCK–TSTC 555E
Basket Size (W × D × H in mm)	300×300×300(27Liters)	400×400×400(64Liters)	500×500×500(125Liters)
Real Using Temperature Range	-40℃ ~ 100℃(Option -60℃ ~ 100℃)
Test Method	2 Zones Elevator Air Cylinder
Temperature Heating Rate(20℃~120℃)	More than 2℃ / 1 minute
Temperature Descent Rate(20℃~-60℃)	More than 1℃ / 1 minute
High & Low Chamber Temperature Range	High Chamber: 60℃ ~ 120℃ Low Chamber: -55℃ ~ 25℃
Internal Material	Stainless Steel SUS 304 1.2mm
External Material	SS41 1.6mm Powder Coated Steel Plate
High Chamber Internal Size (W × D × H in mm)	500 × 500 × 550	700 × 700 × 800	800 × 800 × 900
Low Chamber Internal Size (W × D × H in mm)	600 × 600 × 650	700 × 700 × 850	800 × 800 × 950
External Size ( W x D x H in mm ) (Approx.)	1,450 × 1,450 × 1,900	1,450 × 1,550 × 2,150	1,550 × 1,650 × 2,250
Controller Model: TS 500 HANYOUNG NUX	TS 500 Color LCD Screen(Touch Panel Type), 240Patterns(Pattern Kinds 10),Digital Input 16 Contacts, Digital Output 24 Contacts, Possible to remote control through Communication(RS232 & RS485), MADE IN KOREA
Recorder	Model: SR 10006 6Channels YOKOGAWA ELECTRIC CORPORATION, MADE IN JAPAN
Refrigerator & Refrigerant	COPELAND Scroll Compressors, MADE IN U.S.A. Refrigerants: R-22a, R-23a
Refrigerator & Refrigerant	Low temp. : 1.5HP × 1 1.5HP × 1	Low temp. : 2HP × 1 2HP × 1	Low temp. : 5HP × 1 3HP × 1
Refrigeration Method	Mechanical Compression Refrigeration Type
Safety Device	Overheating Protector, Earth Leakage Breaker, Fan Motor Overload Protector, Refrigerator Overload Protector, Refrigerator High & Low Pressure Switch, Protection Fuse
Convenient Specifications	Viewing Window: (W × D) 380mm × 380mm, Thickness: 38mm Chamber Shelf (SUS 304 Hole Punched Plate) 2eas
Power Supply, Power Consumption (Changable by the Customers Request)	AC 380VOLTS, 3PHASES, 60Hz(or50Hz) Approx. 12Kw	AC 380VOLTS, 3PHASES, 60Hz(or50Hz) Approx. 15Kw	AC 380VOLTS, 3PHASES, 60Hz(or50Hz) Approx. 18Kw
