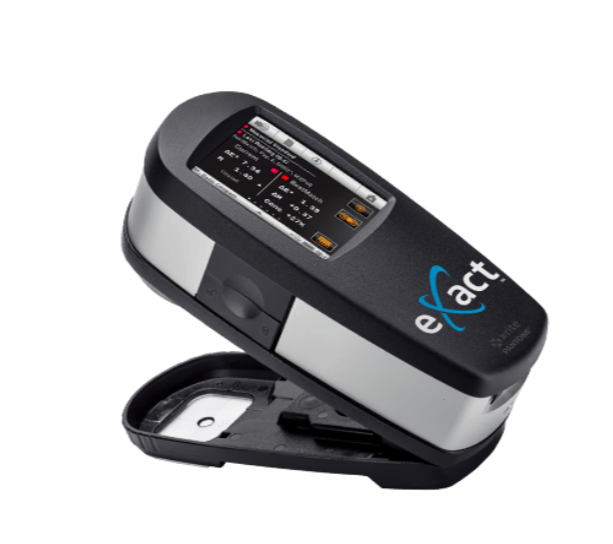

Xrite eXact Standard Handheld Spectrophotometer

3rd Party Software Supported: X-Rite ColorCert, X-Rite Color iQC, X-Rite InkFormulation, X-Rite NetProfiler and many others

Aperture: 1.5 mm, 2 mm, 4 mm or 6 mm

Battery: Lithium Ion, 7.4VDC, 2200mAh

Best Match Feature: Yes

Calibration: Automatic on integrated white reference

Color Differences: CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994)

Communication Interface: USB 2.0; Bluetooth (optional) - Class II

Connectivity: USB 2.0; Bluetooth

Density Range: 0.0 D – 3.0 D

Density Standards: Status A, E, I, T and G

Dimensions (length, width, height): 18 cm x 7.8 cm x 7.6 cm

7.1" x 3.1" x  3.0"

Embedded NetProfiler Support: Yes

Humidity: 30 to 85% RH (non-condensing)

Illuminants: A, C, D50, D55, D65, D75, F2, F7, F11, F12

Import/Export Format: CxF3

Internal Temperature & Humidity Sensor: 30 to 85% RH (non-condensing)

Light Source: Gas filled tungsten (illuminant type A) and UV LED

Measurement Conditions: M0, M1 (part 1), M1 (part 2) , M2, M3; also available in Xp variant for flexible packaging substrates

Measurement Geometry: 45°/0° ring illumination optics, ISO 5-4:2009(E)

Measurement Time: < 1 sec

NetProfiler Support: Yes

Observers: 2° and 10°

Operating Temperature Range: 10°C to 35°C

50°F to 95°F

Scanning Capability: Yes (Optional Upgrade)

Service Indicator: Certification Reminder

Spectral Analyzer: DRS spectral engine

Spectral Interval: 10 nm

Spectral Range: 400 nm to 700 nm

Spectral Reporting: 400 nm to 700 nm with 10 nm interval

Standards: More than 20'000 standards (incl. data for all M modes); New Color Library Tool to Create and Store Standards

Storage Temperature Range: -20° to 50°C

-4° to 122°F

Weight:  700 g/ 1.6 lbs.

What Included: USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate
