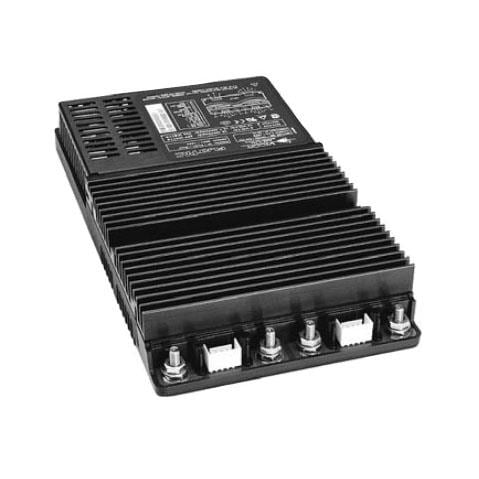

Vicor VI-RUT22-IVVY FlatPAC Autoranging AC-DC Switcher VI-RUT22-IVVY
생산업체: Vicor Model: VI-RUT22-IVVY - 연락처
Width: 185.4 mm
Height: 34.8 mm
Length: 234.8 mm
Industry: Industrial
Approvals: CE, CSA, cTUVus, cURus, EN, FCC, IEC60950-1, UL60950-1
Compliance: CE, CSA, cTUVus, cURus, EN, FCC, IEC 60950-1, UL 60950-1
Efficiency: 80 % to 90 %
Output Power: 50 W, 150 W
Input Voltage: 90 VAC to 132 VAC, 180 VAC to 264 VAC
Mounting Style: Chassis
Input Frequency: 47 Hz to 440 Hz
Load Regulation: Regulated
Isolation Voltage: 4.242 kV
Number of Outputs: 3 Output
Open Frame/Enclosed: Enclosed
Output Voltage-Channel 1: 6.5 VDC
Output Voltage-Channel 2: 15 VDC
Output Voltage-Channel 3: 15 VDC
Operating Temperature Range: - 30 C to + 85 C
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
