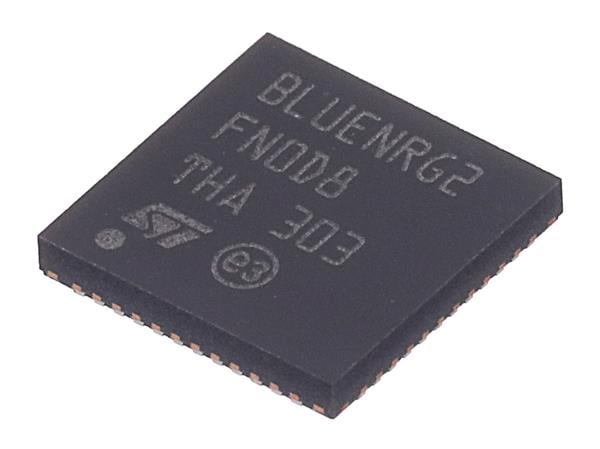

STMicroelectronics BLUENRG-248 Bluetooth Programmable Bluetooth LE 5.2 Wireless SoC
생산업체: STMicroelectronics Model: BLUENRG-248 - 연락처
Core: ARM Cortex M0
Width: 6 mm
Height: 0.85 mm
Length: 6 mm
Technology: Si
Sensitivity: - 88 dBm
Unit Weight: 101 mg
Output Power: 8 dBm
Data RAM Size: 24 kB
Data RAM Type: RAM
ADC Resolution: 10 bit
Data Bus Width: 32 bit
Interface Type: I2C, SPI, UART
Mounting Style: SMD/SMT
Number of I/Os: 26 I/O
Number of Timers: 1 Timer
Maximum Data Rate: 2 Mbps
Moisture Sensitive: Yes
Operating Frequency: 2.4 GHz
Program Memory Size: 256 kB
Program Memory Type: Flash
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.7 V
Number of ADC Channels: 7 Channel
Maximum Clock Frequency: 32 MHz
Supply Current Receiving: 7.7 mA
Supply Current Transmitting: 15.1 mA
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
