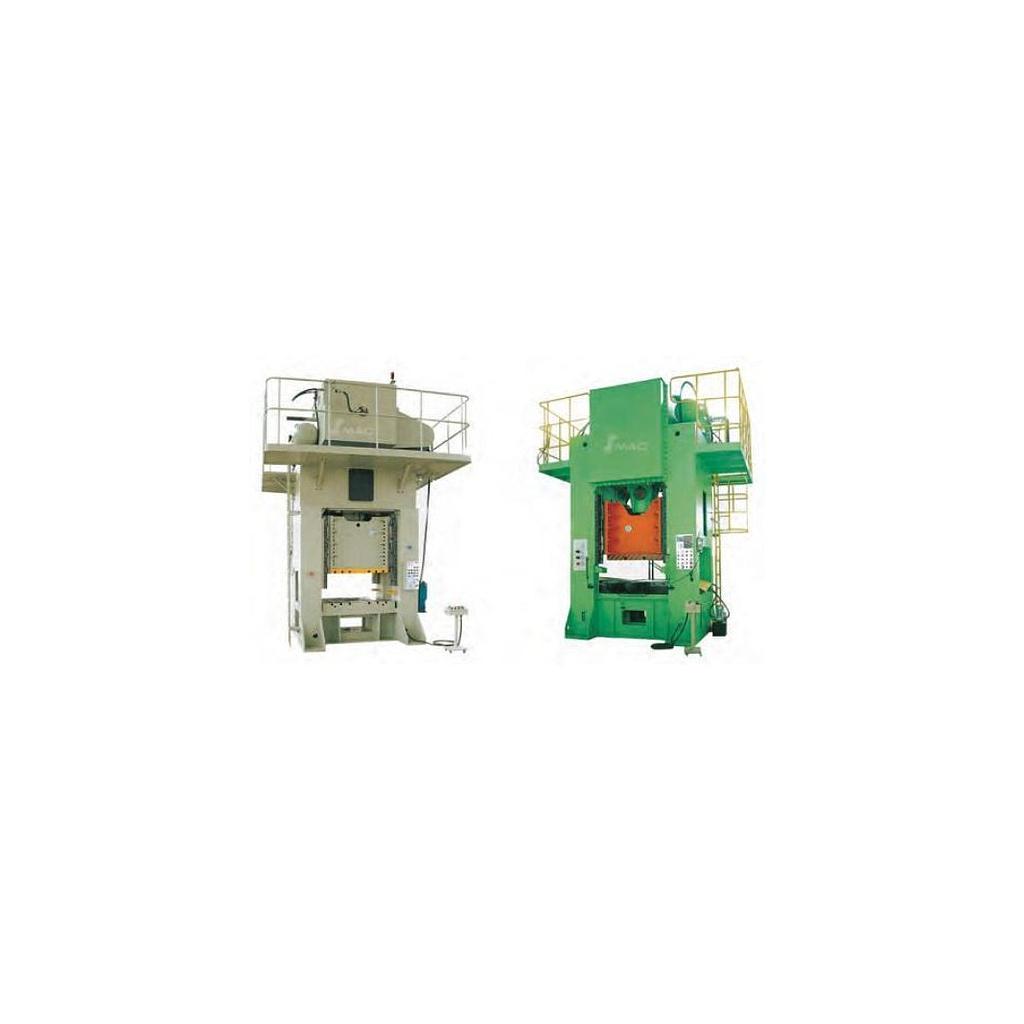

SMAC JL31-1250 Straight-side One Point Press
생산업체: SMAC Model: JL31-1250 보증: 12 Month - 연락처
Nominal force (KN): 12500
Nominal force stroke (mm): 13
Stroke of slide (mm): 500
Strokes per minute (spm): 10
Max.die set height (mm): 800
Die height adjustment (mm): 300
Size of table
L-R (mm): 1800
F-B (mm): 1600
Bottom size of slide
L-R (mm): 1800
F-B (mm): 1600
Distance between gibs (mm): 1880
Cushion
Clamping/Ejecting force (KN): 1500/500
Number: 1
Stroke (mm): 250
Overall dimensions
L-R (mm): 4900
F-B (mm): 4100
Height above floor (mm): 9400
Air pressure (MPa): 0.55
Main motor power (KW): 110
Total weight (T): 210
