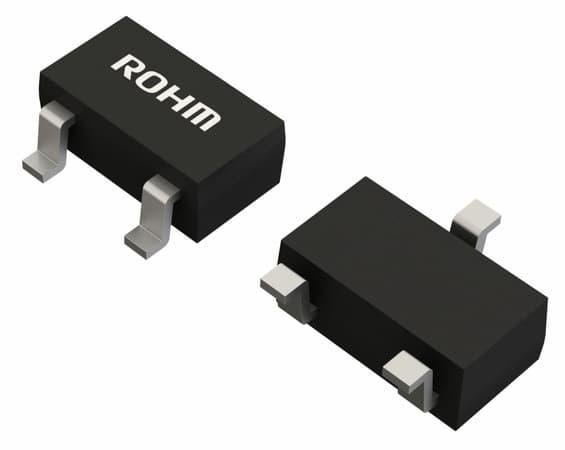

ROHM Semiconductor DTA114GKAT146 Digital Transistors PNP 50V 100MA
생산업체: ROHM Semiconductor Model: DTA114GKAT146 - 연락처
Width: 1.6 mm
Height: 1.1 mm
Length: 2.9 mm
Unit Weight: 8 mg
Configuration: Single
Mounting Style: SMD/SMT
Transistor Polarity: PNP
Pd - Power Dissipation: 200 mW
Typical Input Resistor: 10 kOhms
Emitter- Base Voltage VEBO: - 5 V
Maximum Operating Frequency: 250 MHz
Continuous Collector Current: - 100 mA
Maximum Operating Temperature: + 150 C
DC Collector/Base Gain hfe Min: 30 at - 5 mA, - 5 V
Collector- Emitter Voltage VCEO Max: - 50 V
