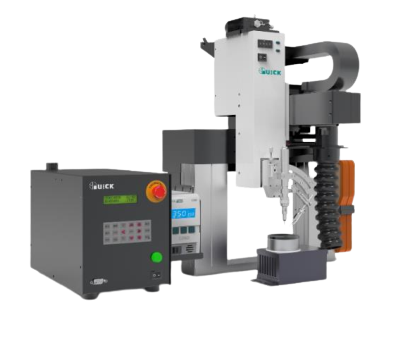

QUICK 9253N 용접로봇
생산업체: QUICK Model: 9253N 보증: 12 Month - 연락처
Power supply 110V/220V AC, 50/60Hz
300W . Power Consumption
Shaft No. 3
Movement range
X (mm) 0~200
Y (mm) 0~200
Z (mm): 0~100
R (degrees): --
Movement speed
X (mm/sec): 0.1~300
Y (mm/sec): 0.1~300
Z (mm/sec): 0.1~300
R (degrees/second): --
Repeatability
X/Y/Z (mm): ±0.02
R (degrees): --
Resolution
X/Y/Z (mm): 0.01
R (degrees): --
Z-Axis Load: 3Kg
Number of demo files Max 255 files, Max 60000 points
Qty file handling. Up to 128 files
Motion control: Control PCBA movement + Teaching Pendant
Noise level: 70dB（Measured within a distance 1m）
Operating environment
Temperature: 0～40℃
Humidity: 20％～90％ (No condensation)
Dimensions (mm)
Width: 470
Depth: 469
Height: 536
Temperature stability: ±3°
Weight: 36Kg
