PCE VDR 10-ICA 진동 데이터 로거 (10~1000 Hz; 0,5~199,9 m/s; ISO Calibration Cert.)

Frequency range: 10 ... 1000 Hz

Acceleration measuring range (at 50 m/s, 160 Hz): 0.5 ... 199.9 m/s, 0.05 ... 20.39 g, 2 ... 656 ft/s

Resolution: 0.1, 0.01, 1

Accuracy: ± (5% of reading + 2 digits)

Speed measuring range (at 50 mm/s, 160 Hz): 0.5 ... 199.9 mm/s, 0.05 ... 19.99 cm/s, 0.02 ... 7.87 in/s

Resolution: 0.1, 0.01, 1

Accuracy: ± (5% of reading + 2 digits)

Display: LCD

Display update time: update time: 1 second

Memory: SD card (included)

Automatic data logging interval: 5 ... 3600 seconds (adjustable)

Analog output: 4 ... 20 mA

Power supply: 6 x 1.5 V AAA batteries or 9 V DC electric power (adapter sold separately)

Interface: RS-232 and USB

Dimensions: 132 x 80 x 32 mm (5.20 x 3.15 x 1.26")

Delivery Scope:

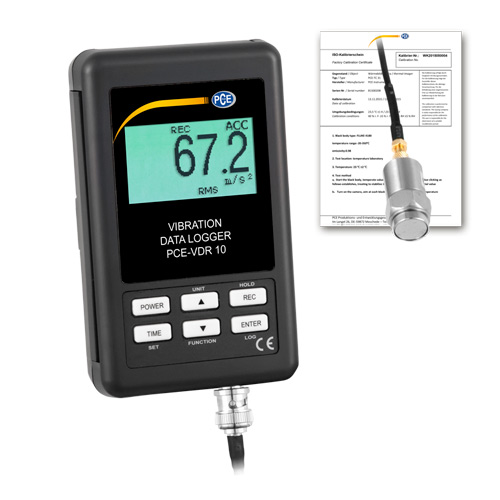

1 x Vibration Data Logger PCE-VDR 10-ICA

1 x vibration sensor

1 x wall bracket

6 x 1.5 V AAA batteries

1 x SD memory card

1 x connector for 4 ... 20 mA output

1 x user manual

1 x ISO Calibration Certificate
