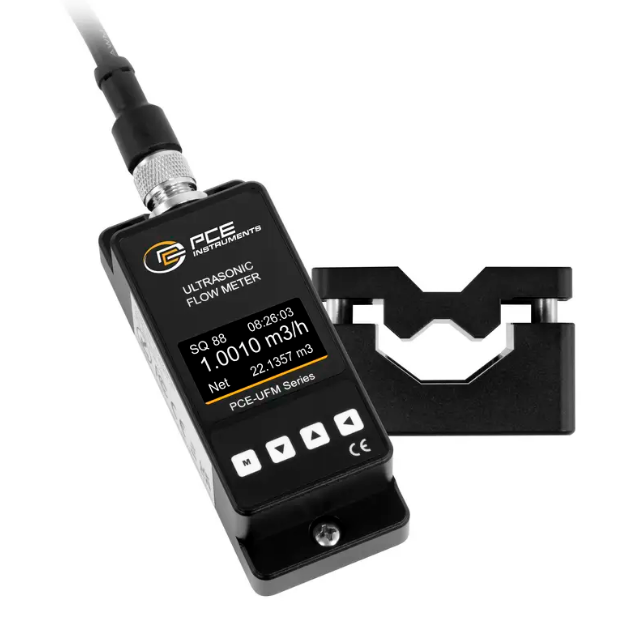

PCE PCE-UFM 10 HVAC 측정기 (0.1~5 m/s, DN10)

- Velocity m/s:

Measurement Range: 0.1 ... 5 m/s

Resolution: 0.001 m/s

Accuracy: 2%

Pipe Size: DN10

- General Technical Data:

Display Type: OLED

Analog Output: 4 ... 20mA

Data Interface: RS485

Voltage Supply: 9 ... 36 V DC

Materials: PVC, Steel, Stainless Steel, Copper, PVDF (Polyvinylidenfluorid), PFA (Perfluoralkoxy-Polymere), PTFE (Polytetrafluorethylen), PU (Polyurethane), Aluminum

Measuring Medium: Water, Seawater, Oil, User-defined (manual input of sound velocity for the medium)

Menu Language: English

Protection Class: IP54

Weight : 515 g

Device Weight with Accessories: 652 g

Device Weight with Accessories and Packaging: 892 g

Dimensions (L x W x H): 110 x 58 x 67 mm

Dimensions including Packaging (L x W x H): 210 x 153 x 104 mm

Operating Conditions: 0 ... 50 °C

Operating Condition r.H.: < 95%

Storage Conditions: 0 ... 50 °C

Storage Conditions r.H.: < 95%

- Delivery Scope:

1 x Fixed Installation HVAC meter PCE-UFM 10

1 x 2m Connection Cable

4 x Coupling Pads

1 x User Manual
