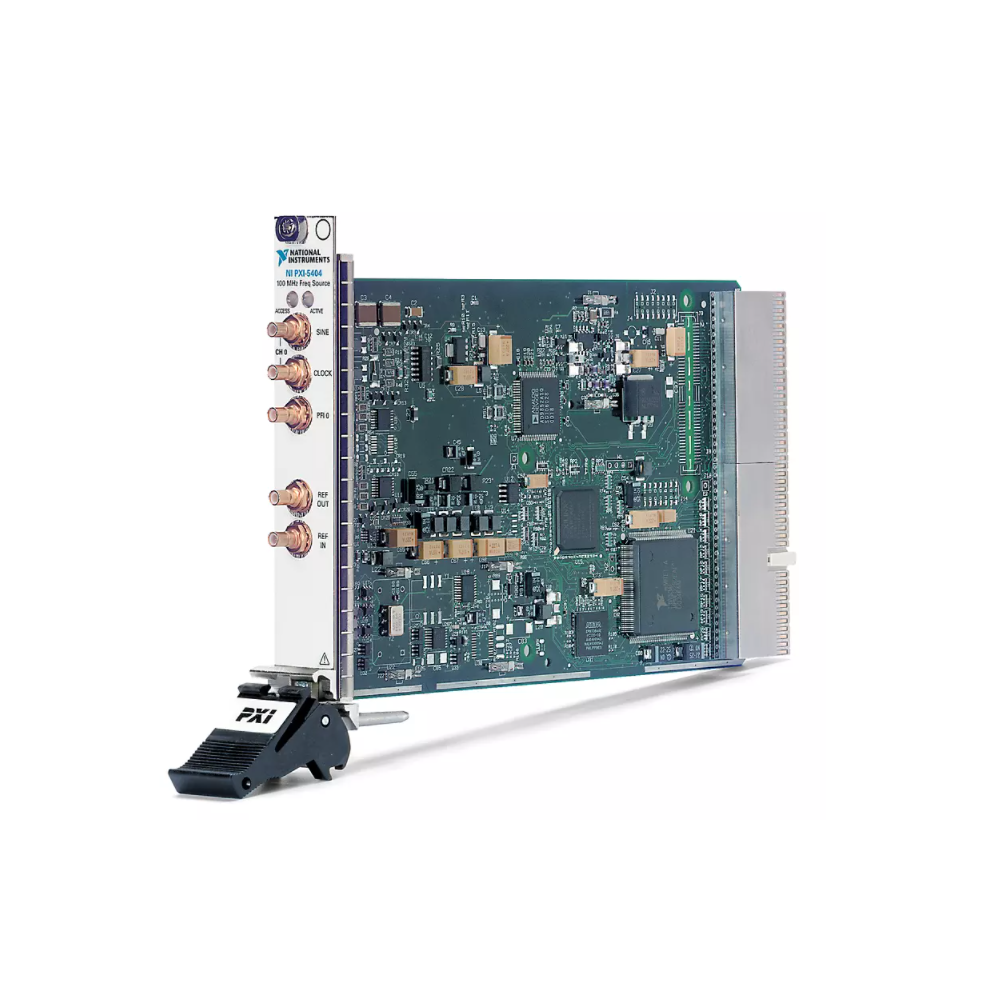

NI PXI-5404 PXI Waveform Generator (1-Channel, ±1V, 8 MB, 105 MHz)
생산업체: NI Model: PXI-5404 P/N: 778577-02 - 연락처
Supports Scripting: —
Bus Connector: PXI Hybrid
Maximum Bandwidth: 105 MHz
Maximum Update Rate: 300 MS/s
Analog Output Resolution: 12 bits
Analog Output Voltage Range: -1 V to 1 V
Analog Output Onboard Memory Size: 8 MB
Number of Output Channels: 1
Supports Arbitrary Waveforms: No
RF Signal Generation: No
Supports Digital Upconversion: No
Generates standard functions and user-defined, arbitrary waveforms as part of a PXI system.
PXI Waveform Generators can produce precise waveforms including sine, square, triangle, and ramp as well as arbitrary, user-defined waveforms using sequences of data or streaming continuously from a host or peer-to-peer instrument within the PXI system. These instruments are ideal for tightly synchronized, mixed-signal test systems in scientific research or test of semiconductor devices, consumer electronics, automotive, and aerospace/defense.
Datasheet
