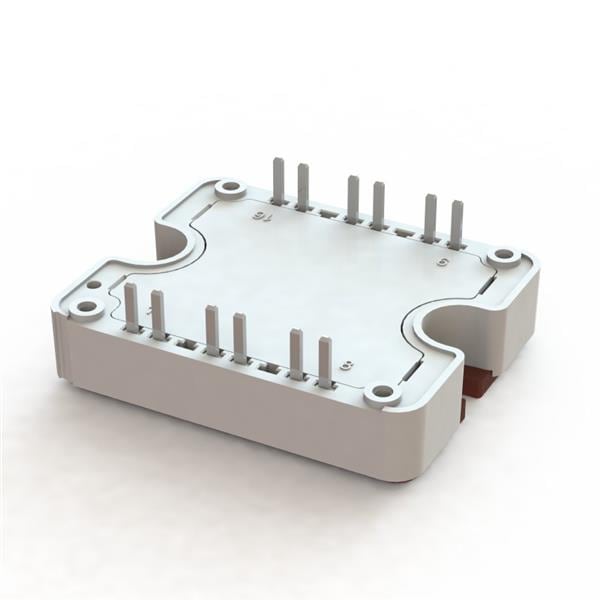

Microchip Technology MSCSM120AM16T1AG Phase Leg SiC MOSFET Power Module PM-MOSFET-SIC-SP1F
생산업체: Microchip Technology Model: MSCSM120AM16T1AG - 연락처
Fall Time: 25 ns
Rise Time: 30 ns
Technology: SiC
Configuration: Dual
Mounting Style: Screw Mount
Transistor Polarity: N-Channel
Pd - Power Dissipation: 745 W
Vgs - Gate-Source Voltage: - 10 V, + 23 V
Typical Turn-On Delay Time: 30 ns
Typical Turn-Off Delay Time: 50 ns
Id - Continuous Drain Current: 173 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 40 C
Rds On - Drain-Source Resistance: 16 mOhms
Vds - Drain-Source Breakdown Voltage: 1.2 kV
Vgs th - Gate-Source Threshold Voltage: 1.8 V
