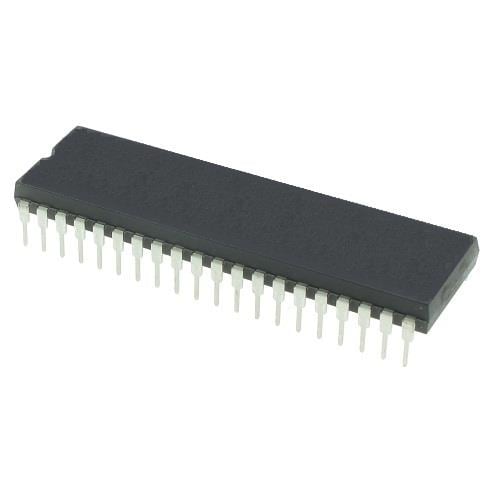

Microchip Technology ATF2500C-20PU CPLD - 복합 프로그래머블 로직 디바이스 20 ns 24 I/O 핀 24 매크로셀 48 레지스터
생산업체: Microchip Technology Model: ATF2500C-20PU - 연락처
Width: 13.97 mm
Height: 4.45 mm
Length: 52.58 mm
Memory Type: EEPROM
Unit Weight: 6 g
Mounting Style: Through Hole
Number of I/Os: 24 I/O
Number of Gates: 2500
Moisture Sensitive: Yes
Number of Macrocells: 24 Macrocell
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Propagation Delay - Max: 20 ns
Operating Supply Voltage: 5 V
Maximum Operating Frequency: 71 MHz
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
