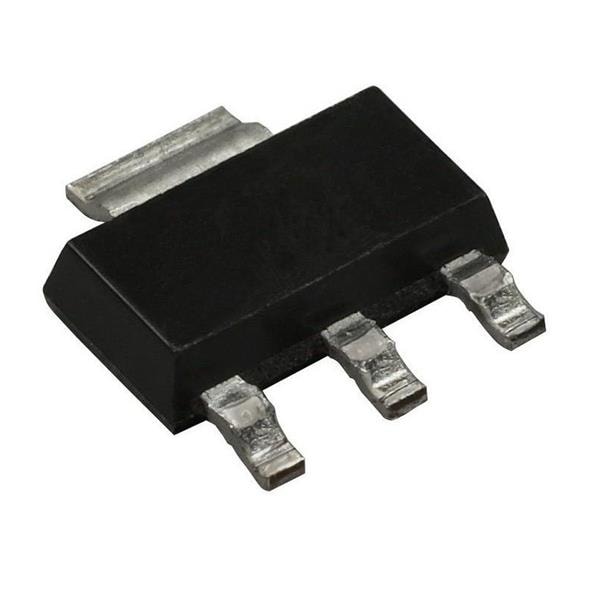

MaxLinear SPX1117M3-L-3-3/TR Low Power Positive Voltage Regulator 800mALOW DROPOUT
생산업체: MaxLinear Model: SPX1117M3-L-3-3/TR - 연락처
Width: 3.5 mm
Height: 1.6 mm
Length: 6.5 mm
Polarity: Positive
Output Type: Fixed
Unit Weight: 250 mg
Mounting Style: SMD/SMT
Output Current: 800 mA
Output Voltage: 3.3 V
Dropout Voltage: 1.1 V
Line Regulation: 3 mV
Load Regulation: 6 mV
Number of Outputs: 1 Output
Quiescent Current: 5 mA
Reference Voltage: 1.25 V
Input Voltage - Max: 15 V
Input Voltage - Min: 2.6 V
Output Voltage Range: 3.234 V to 3.366 V
Dropout Voltage - Max: 1.3 V
Voltage Regulation Accuracy: 1 %
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
PSRR / Ripple Rejection - Typ: 75 dB
