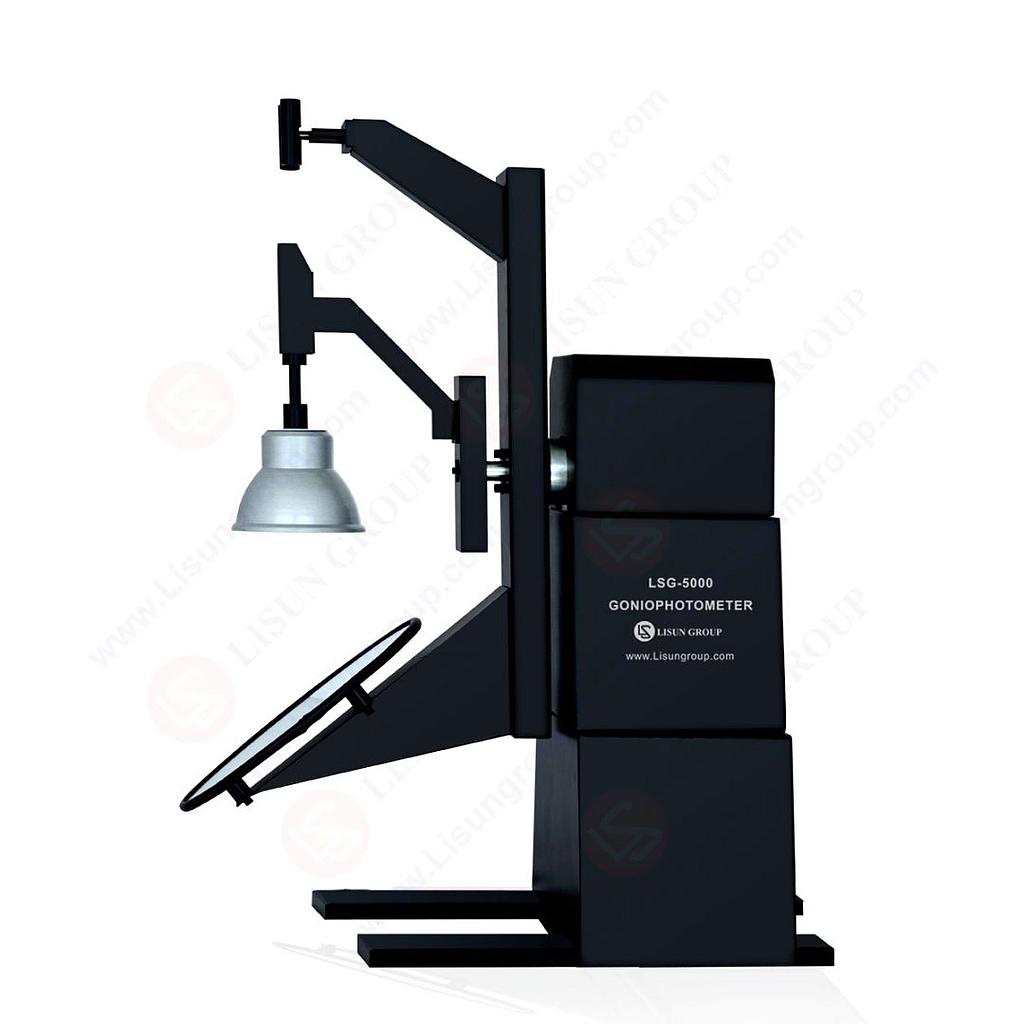

Lisun LSG-5000 각도를 측정하는 분광 광도계 (0,001lx ~ 99,999lx, Standard Size)

1) The tested luminaire rotates around the mirror with an angle of (γ)±180°(or 0-360°) and the tested luminaire rotates around itself with an angle of (C)±180°(or 0-360°)

2) The accuracy of angle: 0.05° Resolution of angle: 0.001°

3) Luminosity Testing Range: Illuminance 0.001lx~99,999lx; Light Intensity 1.0cd～10^7cd(detector)

4) Accuracy of photometry: Germany produced constant temperature photodetector DIN5032-6/CIE pub1. No. 69 Class L

5) Testing Accuracy: 2%(Under Standard lamp); Stray Light: less than 0.1%

6) English version software can run in Win7, Win8 or Win10

Measure Size (mm): Diameter=1400

Measure Weight (Kg): 40

Measure Power(W): 600V/10A，AC/DC

System Configuration:

A. LSG-5000 Goniophotometric System

B. SLS-150W DC Standard Light Intensity Lamp

C. LS2050 Digital Power Meter

D. DC3010 CC & CV DC Power Source

E. LSP-1KVAR AC Power Source: 1KVA Pure Sine Wave AC Power Source

F. CASE-19IN 19inch Standard Instruments Cabinet.
