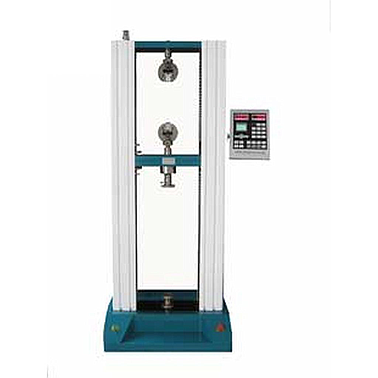

Laryee UE2201 디지털 전자 인장 시험기 (1KN, 2% -100% FS)

- Max testing Force (kN): 1
- Valid force measuring range: 2%-100% F.S
- Accuracy of Force: ±1% of indicated value (±0.5% as special order)
- Resolution of Force: 1/300000
- Resolution of crosshead displacement Measurement: 0.01 mm
- Displacement Accuracy: ±1%
- Speed range of Crosshead: 0.01-500mm/min (Max 1000mm/min as special order)
- Speed Accuracy: ±1%
- Valid tension testing space: 800
- Compression testing space: 900
- Valid width between columns: 400
- Tension sample
+ Flat sample thickness(mm): 0-14
+ Round sample diameter(mm):Ø4-14
- Crosshead Move Range: 0-1100mm
- Deformation Measurement: ±1% as optional part
- Connect to PC: By interface and Ethernet cable as optional parts.
- Drive type: Servo Motor with Ball Screw Driver
- Power supply: 1P, 220V, 50/60Hz
- Overall dimension of host machine (mm): 740×600×1800
- Weight (kg): 550
Standard Accessories
Encoder installed, Load cell installed; Servo motor built in; Control card and display unit;
Flat Tension Grip; Compression Plates; Installation tool and Cables.

Optional Accessories
Strain gauge type Extensometer, Large deformation Extensometer;
Computer interface and software; Computer, Windows Operation System, Printer;
