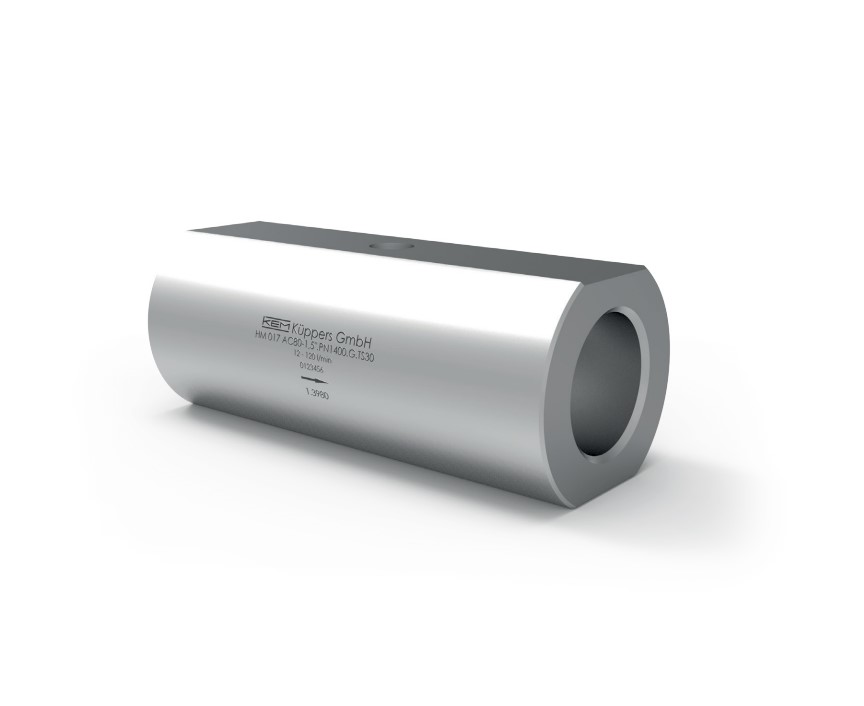

KEM HM 009 AC Turbine Flow Meters (3.3 - 33 L/min)
생산업체: KEM Model: HM 009 AC - 연락처
Technical Data – Sizes
HM types: HM 009 AC
Measuring Range (l/min): 3.3 - 33 L/min
K-Factor (pulses/l): 5,000 (pulses/l)
Max. Pressure: 1,400 [20,305] (bar/psi)
Max. Frequency (Hz): 2,750 Hz
Weight: 2.4 kg
Technical Data – General
Measuring Accuracy: ±0.1%
Repeatability: ±0.05 % (under the same condition)
Linearity: ±1 % of actual flow (viscosity = 1 mm²/s)
Viscosity Range: 0.8 up to 30 mm2/s
Measuring Span
Standard: 1:10
Extended: on request
Materials
Housing: as per DIN 1.3980
Wheels: as per 1.4460 [AISI 329]
Bearing: Tungsten carbide sleeve bearing
Medium Temperature: -40 °C up to +150 °C [-40 °F up to +302 °F]

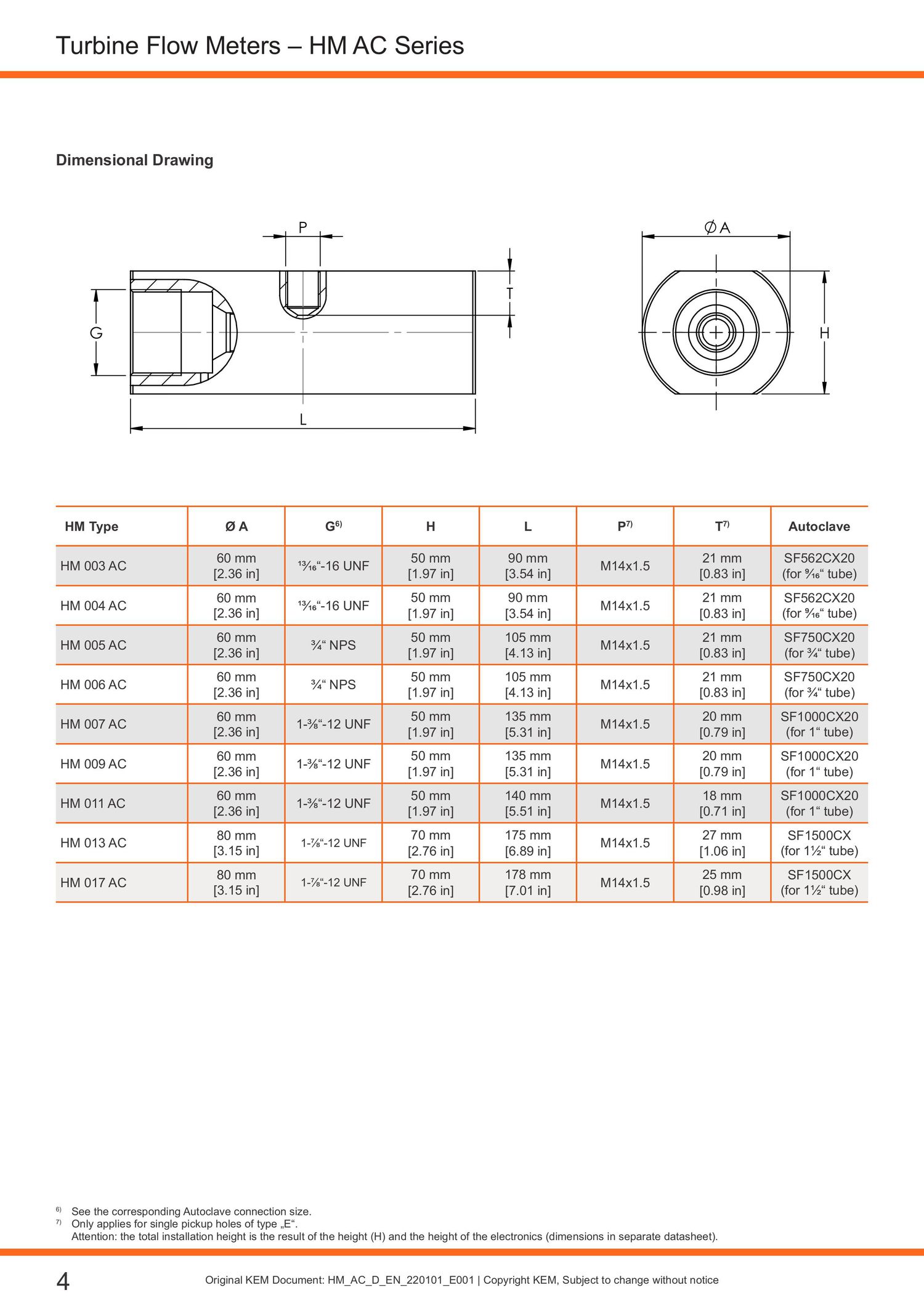

Dimensions: See dimensional drawing
See datasheet for choosing suitable configurations!
