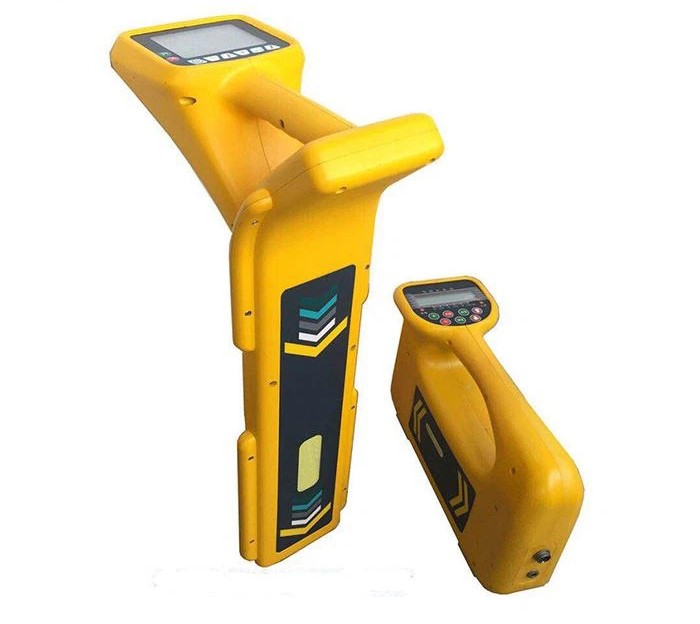

Huazheng HZ-5000 Underground Cable Detector

1.Locator

Positioning accuracy: ± 5% of depth

Depth measurement accuracy: ± 5% of depth (no adjacent line interference)

Current measurement accuracy: ± 5% of actual current

Depth measurement range: <6 m

Working mode: valley method, peak method, broad peak method and peak arrowmethod. Operating frequency: radio, 50Hz, 100Hz, 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz (different operating frequencies according to different product models)

Working temperature: -20 ℃ ~ +50 ℃

Battery: 7.4V lithium battery

Dimensions: 595mm × 136mm × 238mm

Weight: 1.6Kg (including battery pack)

2.Transmitter

Output power: 10W

Operating frequency: 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz

(different operating frequencies according to different product models)

Working modes: automatic conversion of three modes - direct connection, inductive

connection and clamp connection

Battery: 14.8V built-in lithium battery pack

Working temperature: -20 ℃ ~ +50 ℃

Dimensions: 348mm × 228mm × 84mm

Weight: 2.5Kg (including battery pack)
