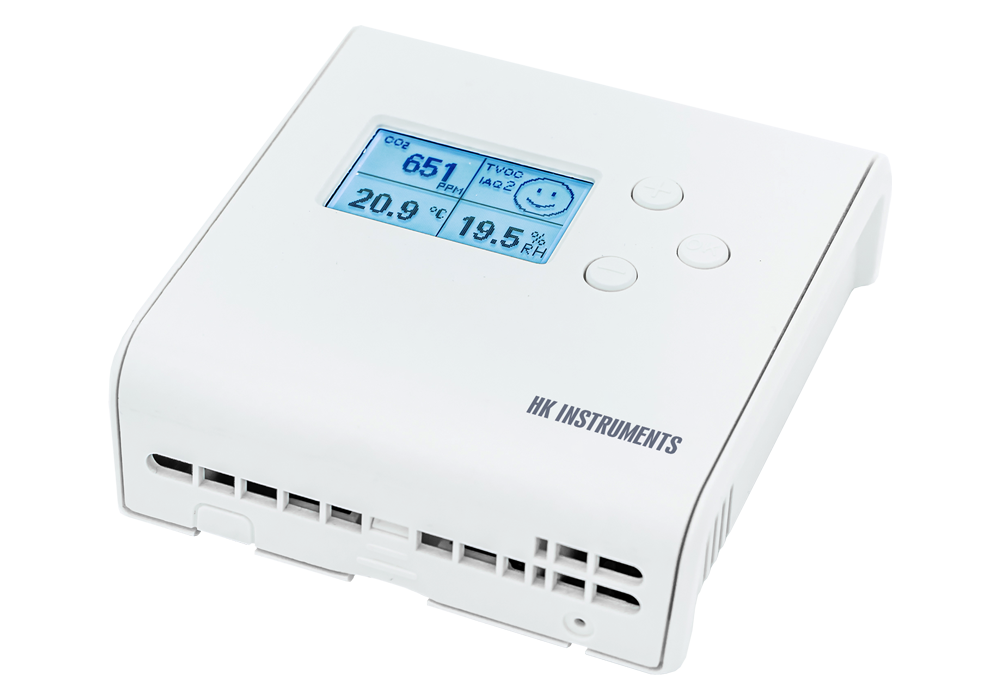

HK Instruments Siro-rH-T-A-D Multifunctional indoor air quality transmitters for building automation systems (rH: 0–100 %; T: 0...50°C)

Measurement ranges:

+ Temperature:  0...50 °C

+ Relative humidity: 0–100 %rH

Accuracy:

+ Temperature:  ±0.5 ⁰C (typical at 20 ⁰C)

+ Relative humidity: ±2.4 %rH (typical at 20 ºC, 30 % rH)

Measuring elements:

+ CO2: Non-dispersive infrared (NDIR)

+ VOC: Complementary Metal Oxide Semiconductor (CMOS)

+ PM: Laser-based light scattering particle sensing

+ Temperature: Integrated to CMOS

+ Relative humidity: Thermoset polymer capacitive sensing element

Measuring units:

+ CO2: ppm

+ Relative humidity: % rH

+ Temperature: °C

+ VOC:  CO2eq: ppm;  TVOC: ppm, μg/m3

+ PM1/2.5/10: μg/m3

Calibration (CO2): Automatic self-calibration, ABC LogicTM

Supply voltage: 24 VDC/VAC ±10 %

Output signal 1–4:0...10 V (optional 2...10 V / 0...5 V, display or configuration tool required); Optional: 4...20 mA;  Linear to selected measurement (CO2, VOC, PM, rH or Temp)

Operating temperature: 0...50 °C

Protection standard: IP20

Noted:

rH = Humidity sensor

T = Temperature sensor,

A = mA output

D = Display
