| 생산업체: | Cybertek |

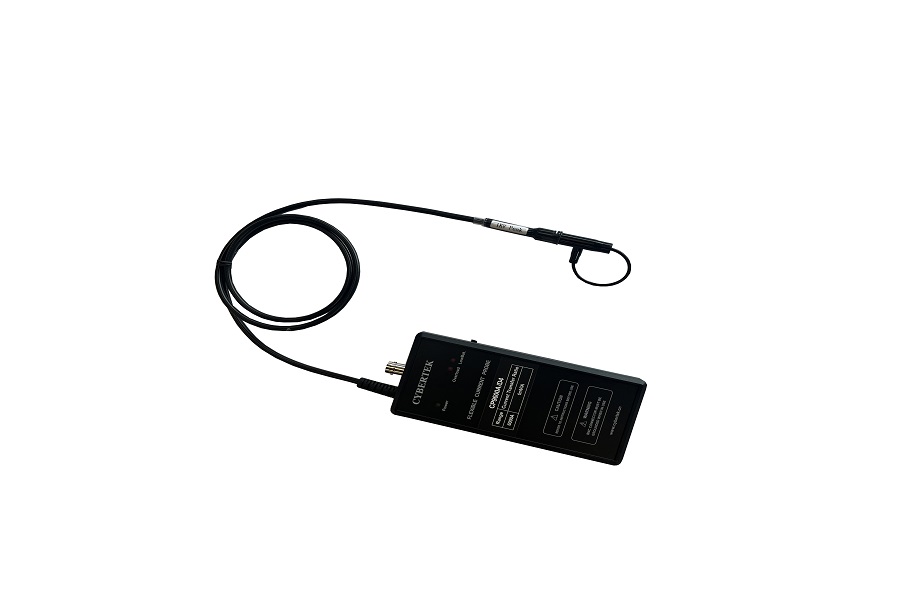

| Model: | CP9012A |
Sensitivity (mV/A): 50
Peak current (kA): 0.12
Peak di/dt (kA/µS): 1
Noise max (mVp-p): 12
Droop typ. (%/ms): 9.5
LF bandwidth -3dB(Hz): 10
HF bandwidth -3dB(MHz): 15
Rise time: ≤23.3ns
Accuracytyp.: 2%
Insulation voltage: 2kV
Max. output voltage: ±6Vpk
Terminal load: ≥100kΩ
