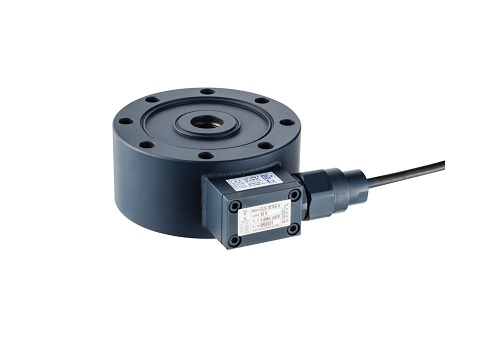

CURIOTEC CLS-Ex d-15T Pan Cake Load Cell (15 Tf)
생산업체: CURIOTEC Model: CLS-Ex d-15T - 연락처
Max.Capacity (Tf): 15
Rated output ( mV/V): 2.0±0.005
Zero balance ( mV/V): 0.0±0.03
Combined error (%RO): 0.05
Repeatability (%RO): 0.02
Creep (30 min.) (%RO): 0.03
Temperature effec on
+ Zero value (%RO/10℃ ): 0.03
+ Output value (%RO/10℃ ): 0.03
Excitation
+ Recommend (V ): 10
+ Maximum ( V): 15
Resistance ():
+ Input (Ω ): 350±3.5
+ Output ( Ω): 350±3.5
Insulation ( ㏁): ＞2000
Compensated temp.range (℃): -10~+40
Operating temp, ( ℃ ): -20~+80
