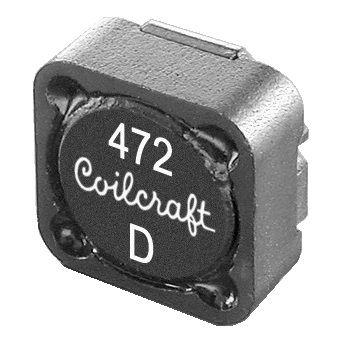

Coilcraft MSS1278H-105KED Power Inductor 1000uH Shld .74A 10% DCR1150mOhmsAEC-Q200
생산업체: Coilcraft Model: MSS1278H-105KED - 연락처
Width: 12 mm
Height: 7.8 mm
Length: 12 mm
Shielding: Shielded
Tolerance: 10 %
Inductance: 1 mH
Application: Automotive
Termination: Standard
Core Material: Ferrite
Qualification: AEC-Q200
Mounting Style: PCB Mount
Termination Style: SMD/SMT
Maximum DC Current: 540 mA
Saturation Current: 760 mA
Maximum DC Resistance: 970 mOhms
Self Resonant Frequency: 1.4 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
