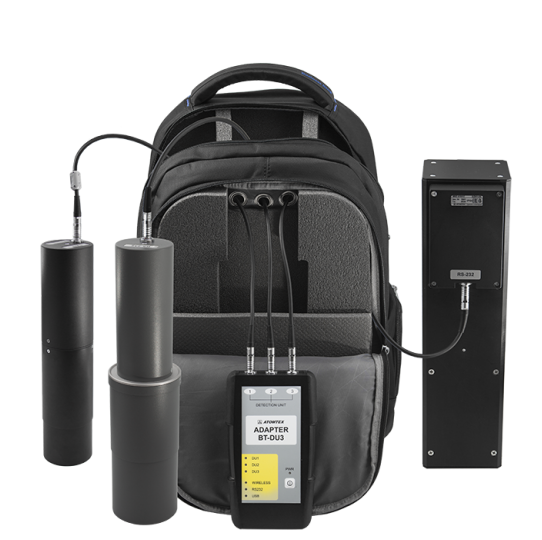

Atomtex AT6101C 분광계 (γ, n, 0.03 – 150 µSv/h)
생산업체: Atomtex Model: AT6101C 출처: Belarus - 연락처
Gamma radiation detection units, scintillation detector: BDKG-11M (1 or 2 units), NaI(Tl) Ø63x63 mm
Energy range: 20 keV – 3 MeV
Measurement range of ambient dose equivalent rate: 0.03 – 150 µSv/h
Limits of tolerable intrinsic relative error: ±20%
Typical sensitivity to 137Cs gamma radiation:
2200 cps/(µSv·h^-1 )
[4400 cps/(µSv·h^-1 )]
Alarm activation time: <2 s
Typical resolution at 662 keV (137Cs): 7.5%
Option to extend the dose rate measurement range: BDKG-04 detection unit, up to 10 Sv/h
Neutron radiation detection unit, detector
BDKN-05M, Two Не-3 proportional counters Ø30x360 mm in polyethylene moderator
Energy range: 0.025 eV – 14 MeV
Typical sensitivity to 252Cf neutron radiation: 20 cps/(neutron•s^-1•cm^-2)
Protection class:
IР55 (backpack)
IР65 (case)
Overall dimensions, weight:
520х380х220 mm, 7 kg (backpack)
625х500х300 mm, 16.5 kg (case)
Datasheet
Discreet detection of sources of ionizing radiation with identification of radionuclides.
Effective technical solution to prevent illegal traffic of radioactive materials.
Best in class
20 hours of operation time
Automatic simultaneous gamma and neutron radiation scanning with radionuclide identification
Continuous recording of scanning data with GPS referencing for further analysis
Dose rate measurement range can be expanded to 10 Sv/h
"GARM" application software for further data processing and analysis in expert mode
"ARMS" application software for automatic transfer of data to a remote server (option)
