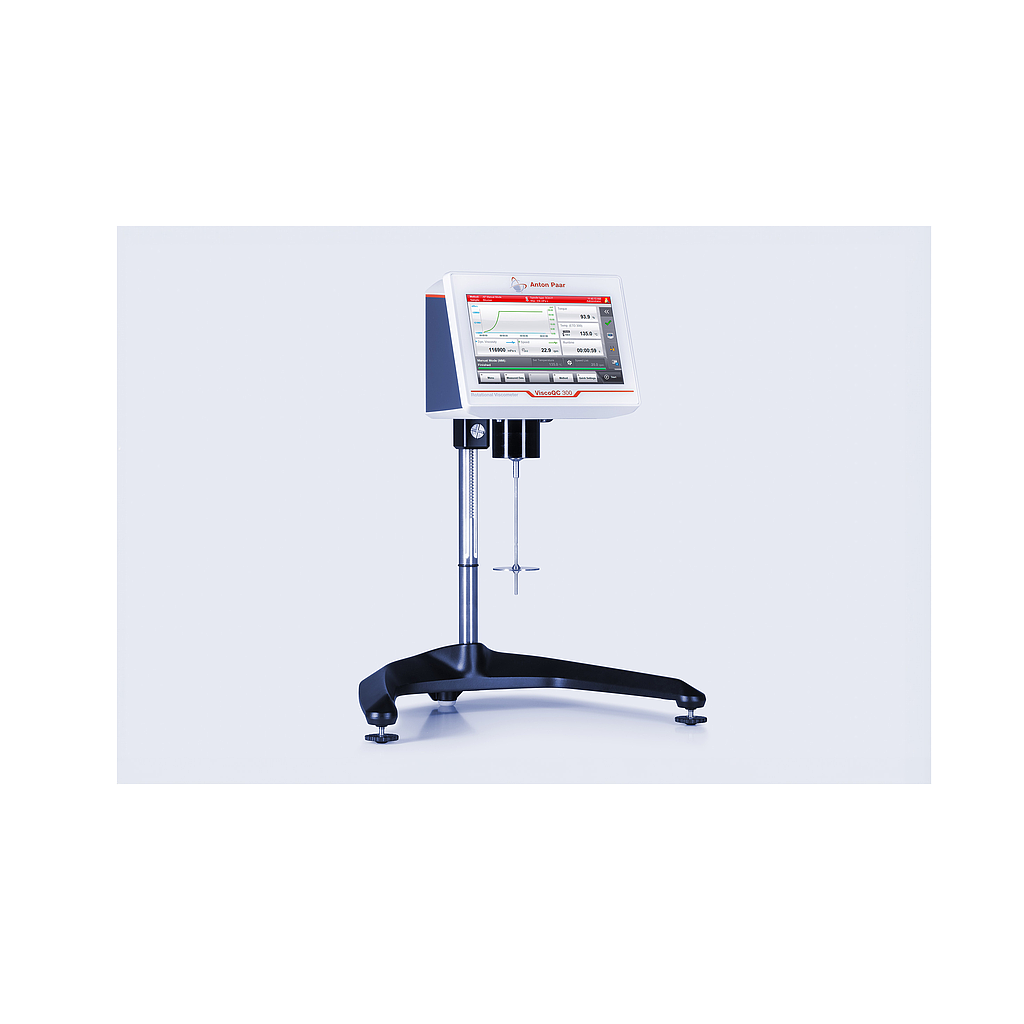

Anton Paar ViscoQC 300 R 회전 점도계 (1.3 ~ 40 M)

Viscosity test: Multi-point

Viscosity range [mPa·s or cP](depends on measuring system): 1.3** to 40 M

Speed [rpm]: 0.01 rpm to 250 rpm

Speed list with 18 standard speeds

Freely selectable speeds within the speed range

Max. spring torque [mNm]: 0.7187

Accuracy: ±1.0 % full scale range

Repeatability: ±0.2 % full scale range

Heli-Plus compatibility: Yes

PTD 100 Cone-Plate compatibility: Yes

ETD 300 compatibility: Yes

Peltier temperature control:

+15 °C to +80 °C (for DIN/SSA with PTD 80)

-45 °C to +175 °C (for DIN/SSA/UL/4B2/L1D22 with PTD 175)

0 °C to + 100 °C (for CP with PTD 100 Cone-Plate)

Electrical temperature control: +25 °C to +300 °C (for SSA/DIN with ETD 300)

Liquid temperature control/sensing: Ambient to +100 °C (control of L/RH spindles with optional thermostat bath)

Liquid temperature control/sensing: Ambient to +100 °C (control of L/RH spindles with optional thermostat bath)

Temperature sensing: -60 °C to +300 °C (temperature sensing with optional Pt100)

Intuitive user interface: 7" color touchscreen display; Options: keyboard, mouse, 2D bar code reader

Languages: EN, DE, ES, FR, IT, PT, JA, KO, RU, ZH-CN, ZH-TW, PO, CZE

Built-in digital leveling: Yes

Easiest spindle exchange (magnetic coupling): Yes

Automatic spindle recognition (Toolmaster™): Yes

Automatic measuring range calculation: Yes

Automatic speed searching function (TruMode™): Yes

Spindle correction by user: Yes

Users, user groups: ✔ Customizable

* With optional PTD 100 Cone-Plate, with L1 spindle 15 mPa·s

** With optional PTD 100 Cone-Plate, with RH1 spindle 100 mPa·s

*** With optional PTD 100 Cone-Plate, with RH1 spindle 800 mPa·s

M = million

DIN = Concentric cylinders, double-gap

SSA = Small sample adapter (SC4-xx)

UL = Ultra-low viscosity adapter
