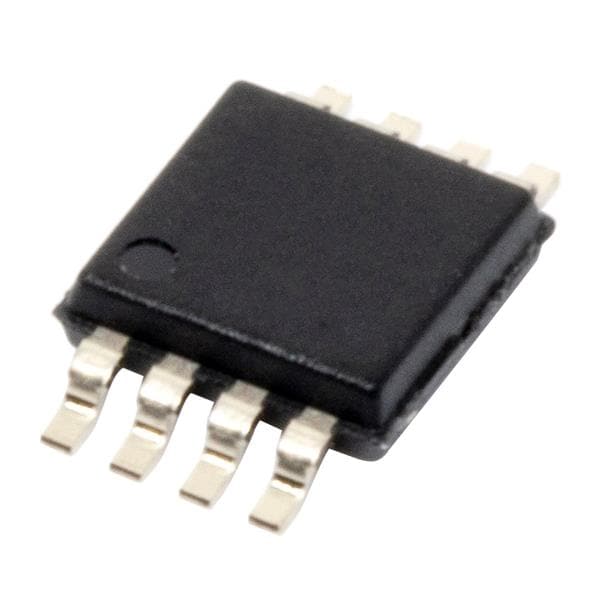

Analog Devices ADR444ARMZ Voltage References Ultralow Noise, LDO XFET 4.096V Voltage Reference w/Current Sink and Source
생산업체: Analog Devices Model: ADR444ARMZ - 연락처
Width: 3 mm
Height: 0.85 mm
Length: 3 mm
Accuracy: 50 ppm/mA
Topology: Series References
Unit Weight: 140 mg
Mounting Style: SMD/SMT
Output Current: 10 mA
Output Voltage: 4.096 V
Reference Type: Series Precision References
Load Regulation: 50 ppm/mA
Initial Accuracy: 0.13 %
Shunt Current - Max: 10 mA
Description/Function: 4.096 V high precision, LDO XFET reference for use with high performance sigma-delta converters
Temperature Coefficient: 5 PPM / C
Operating Supply Current: 3.75 mA
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Series VREF - Input Voltage - Max: 18 V
