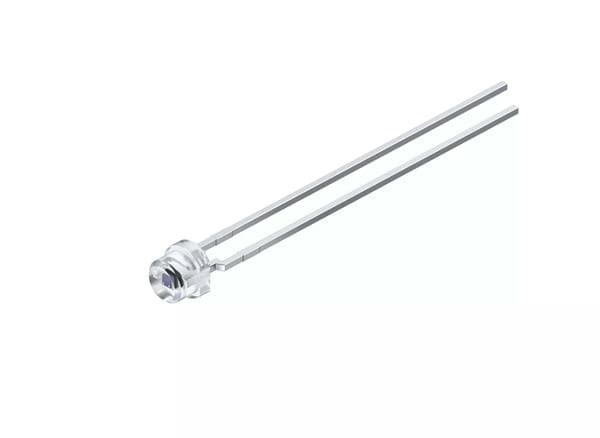

ams OSRAM SFH 3310 Ambient Light Sensor with V-lambda Characteristics PHOTOTRANSISTOR
생산업체: ams OSRAM Model: SFH 3310 - 연락처
Width: 4 mm
Height: 3.1 mm
Length: 4 mm
Wavelength: 570 nm
Unit Weight: 200 mg
Dark Current: 3 nA
Light Current: 460 uA
Qualification: AEC-Q100
Mounting Style: Through Hole
Peak Wavelength: 570 nm
Lens Color/Style: Clear
Half Intensity Angle Degrees: 75 deg
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
Maximum On-State Collector Current: 20 mA
Collector- Emitter Voltage VCEO Max: 5.5 V
Collector-Emitter Breakdown Voltage: 5.5 V
Collector-Emitter Saturation Voltage: 100 mV
