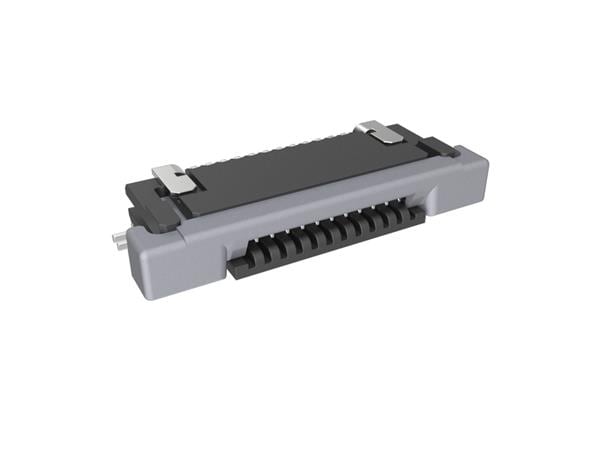

Amphenol FCI SFV12R-3STE1HLF Board Mount 0.50mm Flex Connector, SFV-R Series, 12 Position, Bottom Side Contact, Side Entry Surface Mount ZIF Connector, Halogen Free, Lead Free with Cable-Lock
생산업체: Amphenol FCI Model: SFV12R-3STE1HLF - 연락처
Pitch: 0.5 mm
Actuation Type: ZIF
Current Rating: 500 mA
Mounting Angle: Right Angle
Voltage Rating: 50 VAC, VDC
Contact Plating: Tin
Contact Location: Bottom Contact
Contact Material: Phosphor Bronze
Housing Material: Polyamide (PA)
Termination Style: SMD/SMT
Flammability Rating: UL 94 V-0
Number of Positions: 12 Position
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 55 C
