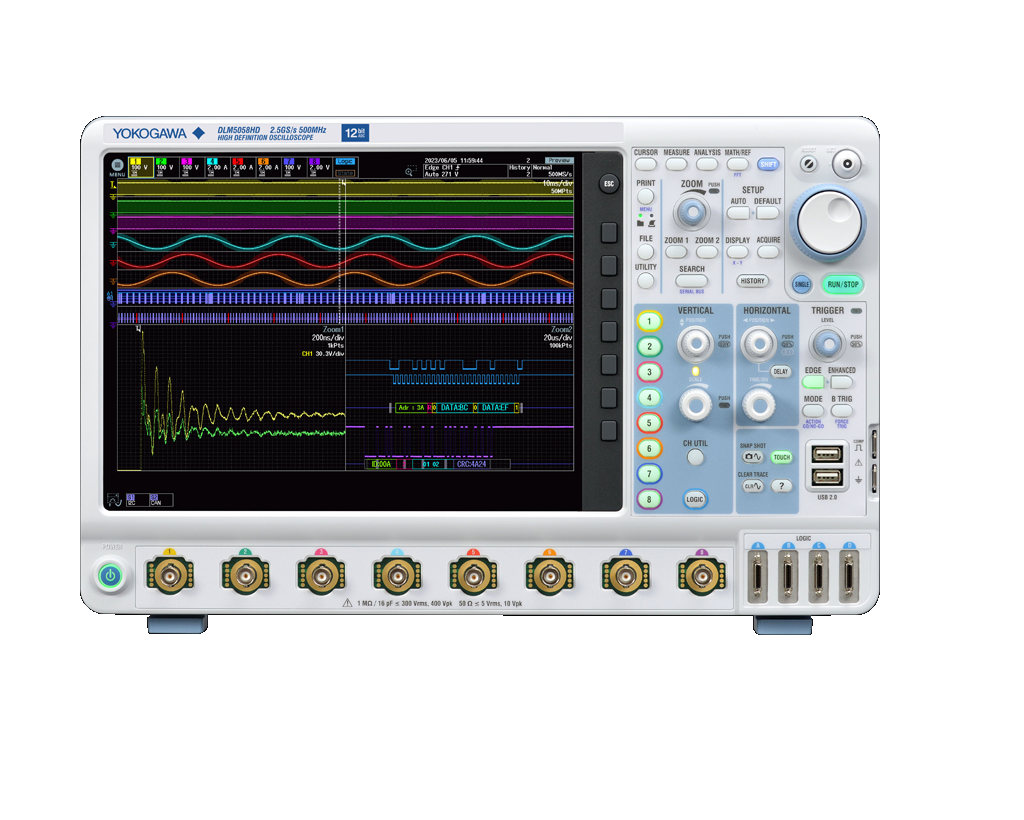

YOKOGAWA DLM5038HD 高解像度オシロスコープ (350 MHz; 2.5 GS/s; 8CH)

Max. Sampling Rate: 2.5 GS/s

Bandwidth:  350 MHz

Analog Input Channels: 8ch

Logic Input: 16-bit(std)/32-bit(option)

Vertical Sensitivity: 1 MΩ input: 500 μV/div to 10 V/div, 50 Ω input: 500 μV/div to 1 V/div

Input Coupling: AC 1MΩ, DC 1MΩ, DC 50Ω

Input Impedance: 1 MΩ±1.0%, 50 Ω±1.0%

Max. Input Voltage: 1 MΩ input: 300 Vrms or less and 400 Vpeak or less, 50 Ω input: 5 Vrms or less and 10 Vpeak or less

Trigger Types: Edge, Edge OR, Pulse Width, Timeout, Pattern, Runt, Rise/Fall Time, Interval, Window, Window OR, TV, User Define serial pattern, A Delay B, A to B(N)

Trigger Types (Option): UART/ I2C/ SPI/ FlexRay/ CAN/ CAN FD/ LIN/ SENT/ CXPI/ PSI5 Airbag

Vertical Axis Resolution: 12 bits max. 16 bits (High Resolution Mode)

Sweep Time: 1 ns/div to 500 s/div

Max. Record Length (St'd): 125 Mpoints

Max. Record Length (Optional): 1 Gpoints

Internal Media Drive (St'd): -

Internal Storage: 1.7 GB (Standard) 64 GB (option)

Interface (St'd): USB3.0, Ethernet

Interface (Optional): GP-IB

Other Features: USB storage, Two-unit connection function "DLMsync" for synchronous measurement of up to 16 analog channels (/SY option), IEEE1588 Slave

Other Features (Optional): Built-in printer, memory expansion, User defined Math, Power supply analysis function, serial bus analysis, probe power terminals, IEEE1588 Master (/CY option)

Display: 12.1" XGA color TFT LCD　Touch Screen

External Dimensions (W x H x D) *excluding protrusions: 426 x 266 x 180 mm

Weight: Approx. 7.3 kg
