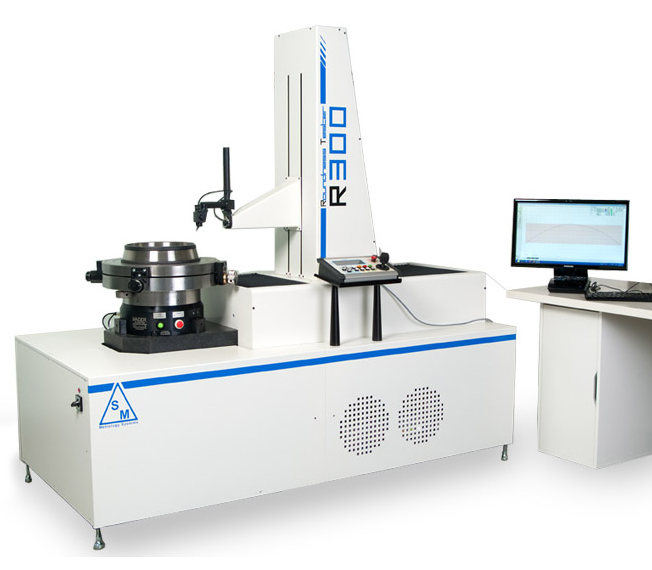

SM Metrology R300 Roundness tester (450 mm, 1200kg)

Axis C - Pneumostatic table:

Platform diameter: 450 mm

Expansion diameter: 1200 mm

Maximum measurable diameter: 1000 mm

Axial lift: 1200 kg

Radial Run-Out (at table level): ≤0.1 μm

Speed: 0.5 – 3 giri/min (measuring); 0 – 6 giri/min (positioning)

Clutch: Pneumostatic for manual rotation

Centering range: ±5 mm

Leveling range: ± 1°

Resolution: 0.1°

Axis R - Pneumostatic measuring arm:

Useful stroke: 500 mm

Straightness: ≤ 0.5 μm on 500 mm

Speed: 0.2 – 10 mm/s

Resolution: 0.1 μm

Z axis - pneumostatic column:

Useful stroke: 500 mm

Maximum reachable height: 600 mm (from table top)

Straightness error: ≤ 0.5 μm su 500 mm

Speed: 0.5 – 15 mm/s

Probe:

Measurement position: In three positions (horizontal, vertical, lateral)

Measuring force: Internal /external 20 – 150 mN

Measuring range: ±1000 μm

Calculable parameters: Roundness, flatness, straightness, cylindricity, taper, cone shape, concentricity, parallelism, orthogonality, angularity, coaxiality, run-out, total run-out, thickness variation, Fourier analysis

Power supply: 110-240 V ; 50-60 Hz
