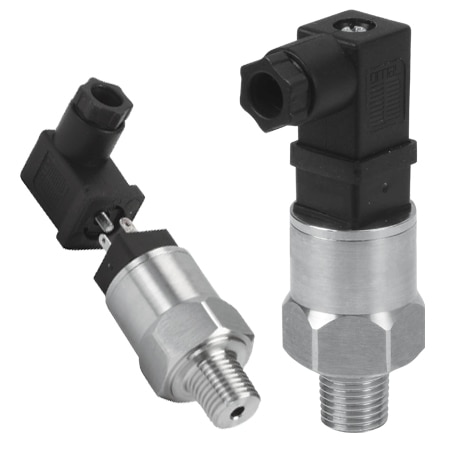

OMEGA PX119A-015G5V OEM Style, Compact Pressure Transmitters (Gauge, 15 psi, NPT Male, 1/8 in)

Weight: 70 g

Accuracy: ± 0.5 %

Stability: <0.3% FS

Vibration: 10 g (20 to 2000 Hz)

Protection: Overvoltage, short circuit, reverse polarity

Accuracy Note: 0.50% BFSL Accuracy

Output Signal: Voltage

Pressure Type: Gauge

Pressure, Max: 15 psi

Pressure, Min: 0 psi

Response Time: 1 ms

Supply Voltage: 8 to 30 Vdc

Electrical Output: 0 to 5 V

Enclosure Ratings: IP65

Materials, Wetted: 304 Stainless Steel, Alumina, Buna-N (NBR)

Enclosure Material: 304 Stainless Steel

Electrical Connection: DIN 43650 C (solenoid valve)

Output Wiring (Pin 1): Supply +

Output Wiring (Pin 2): Supply -

Process Connection Size: 1/8 in

Process Connection Type: NPT Male

Operating Temperature, Max: 135 °C

Operating Temperature, Min: -40 °C

Compensated Temperature, Max: 85 °C

Compensated Temperature, Min: 0 °C

Thermal Effect on Span error, Max: 0.01% FS/°F

Thermal Effect on Zero error, Max: 0.01% FS/°F
