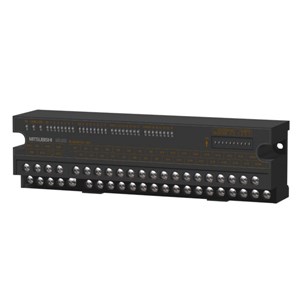

MITSUBISHI AJ65SBTB1-32D CC Link Module (32 Input, 24VDC)
生産者: MITSUBISHI Model: AJ65SBTB1-32D - 連絡先
Technical specification
No. of inputs: 32
Isolation method: Photocoupler
Rated input voltage: 24V d.c.
Rated input current: Approx. 7mA
Operating voltage range: 19.2 to 26.4V d.c. (ripple ratio: within 5%)
ON voltage/ON current: 14V or higher/3.5mA or higher
OFF voltage/OFF current: 6V or lower/1.7mA or lower
Input resistance: Approx. 3.3kΩ
Response time:
OFF—ON: 1.5ms or lower (when 24V d.c.)
ON—OFF: 1.5ms or lower (when 24V d.c.)
Wiring method for common: 32 points/common (2 points)
(terminal block 1-wire type)
Input format: Positive/negative common shared type
(sink/source shared type)
No. of occupied stations: 1 station 32 points assignment (use 32 points)
I/O module power supply:
Voltage: 20.4 to 26.4V d.c. (ripple ratio: within 5%)
Current: 45mA or lower (when 24V d.c., all points ON)
Network speed: Up to 10Mbps
Network distance: Up to 1.2km
