KLEINWACHTER AUD 723 AUDIT 静電メーター (± 1MV/m, 1kΩ ~ 1TΩ)

>> EFM 023 AKC

E-Field Meter Ranges:

Manual selected.

± 20kV/m; ± 200kV/m und ± 1MV/m

Important ! Only in ths Mode the analog interface is switched on !

Max. Value:

Distance 1cm is switched on (for MK 023)

After pressing the switch the maximum pos. and neg. Measure Values are displayed (Walking Test). By pressing the switch again the values will be reset and starts again.

No zero drift

Therefore a zero adjustment is not needed before each measurement.

Measurement ranges:

distance 1cm: 0 to 10kV

distance 2cm: 0 to 20kV

distance 5cm: 0 to 50kV

distance 10cm: 0 to 100kV

distance 20cm: 0 to 200kV

Dimensions: 122mm x 70mm x 26mm ( L x W x H )

Weight: approx. 130 g (without battery)

Power supply: 9V Alkali battery  IEC 6F22

Display:

2-line alphanumeric LC-display with 12 digits each

The measurement distance in cm will be displayed in the first line, the voltage potential will be indicated in volts in the second line.

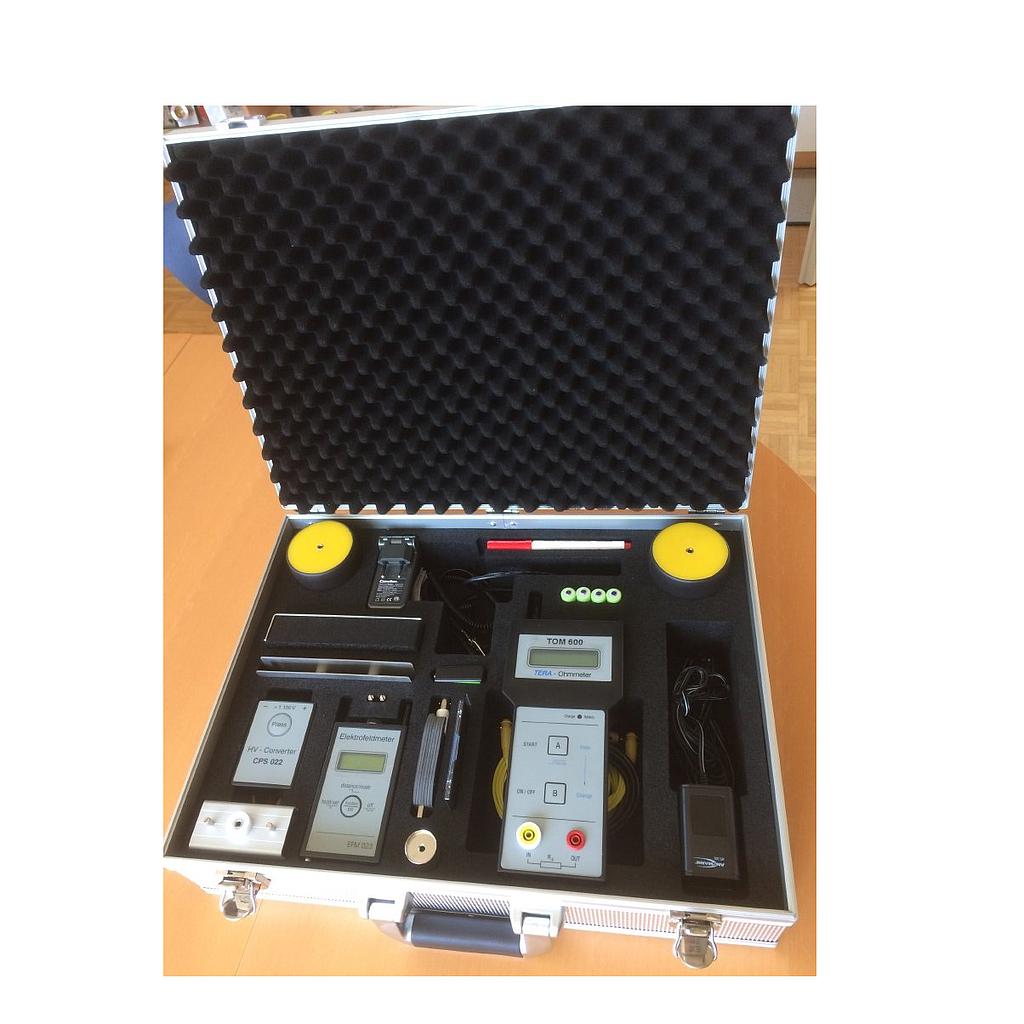

Scope of delivery: EFM 023 with Volt-Meter-Set VMS022 and UAC 110 with KL-ReadOut Software for walking test conform to EN 63410 including the CP2 022 Set all in a stabil Aluminium Case

>> TOM 610 ME

Dimensions: 224mm x 81mm x 40mm (L x W x H)

Weight: 350g

Display: Graphic touch display

Display field: 75 mm x 50 mm

PC- Interface: USB Interface

PC-Software: TOM_ReadOut

Battery: 4xAA-NiMH 2100mAh

Operation time with fully charged battery: >12 hours permanent operation

Charging time with provided power supply: max. 14 hours

Measuring range:

Resistance: 1kΩ..1TΩ Accurarcy ± 10%

Temperature: 0°...60°C Accurarcy ±3°C

Relative air humidity: 20%...80% Accurarcy ± 5%

Power supply: 9V-DC / 300 mA

Scope of delivery:

Mains adapter  230V~ / 50Hz  -  9V DC / 300mA

4 pc. AA Mignon NiMH cells

2pce. Measuring - Electrodes ME2,50 and 1 x 1m / 1x 5m Teflon – isolated cables

serial pc USB

software on CD

manual
