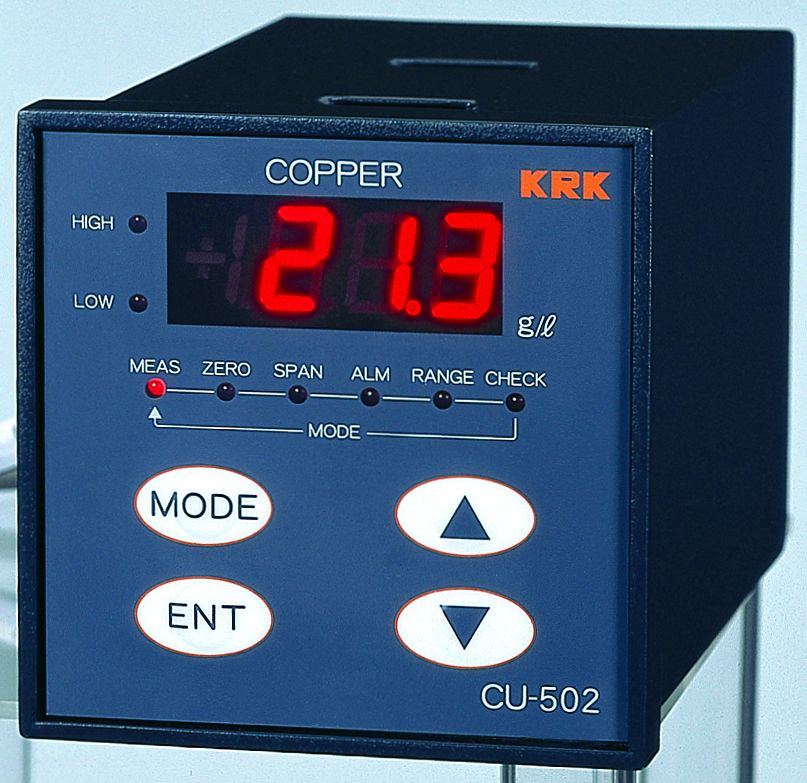

KASAHARA CU-502 めっき液の銅濃度モニター (0 ~ 300 g/l)
生産者: KASAHARA Model: CU-502 - 連絡先
Measurement target: Copper concentration in solution
Measurement method: AC lighting type Spectrophotometry
Indication: LED Red 3 digits (or 4 digits)
Measuring range:
Cu High concentration
(1): 0 ~ 20 g/l
(2): 0 ~ 50 g/l
(3): 0 ~ 80 g/l
Low concentration
(1): 0 ~ 5 g/l
(2): 0 ~ 10 g/l
(3): 0 ~ 20 g/l
CuSO4
(1): 0 ~ 100 g/l
(2): 0 ~ 200 g/l
(3): 0 ~ 300 g/l
Resolution:
Cu High Concentration: 0.1g/l
Low Concentration: 0.01g/l
CuSO4: 1g/l
Reproducibility: Within ±2%
Response Time: Within 5 seconds
Ambient temperature: -5°C~40°C 85%RH or less
Power: AC85V~240V-free power supply
Power Consumption: Approx. 10VA
External dimensions: 96（H）×96（W）×163（D）
Weight: Approx. 1.3kg
