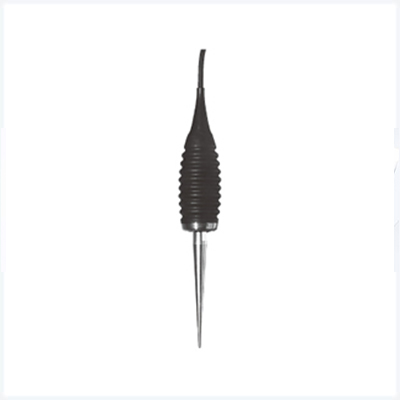

JFE PU-601R Piezoelectric-Type Pick-up (5 ~ 5,000Hz)
生産者: JFE Model: PU-601R - 連絡先
Sensitivity 5.1mV/(m/s2) (50mV/G) ±10%
Frequency range (±3dB ) 5 to 5,000Hz
Maximum measuring acceleration 490m/s2 (50G)
Shock survivability 9,800m/s2 (1,000G)
Mounted resonance frequency 25kHz min. (by screw mount)
Operating temperature range -10 to +60°C
Preserve temperature range -15 to +65°C
Weight 170g
Case material Hard rubber
Cable length 1m
Cable Curl cord cable
Mounting JIS M6, Length 6mm
Probe Length 102mm (attached to the pick-up)
Amplifier Preamplifier built-in
Excitation voltage +12 to +25VDC
Constant current excitation +0.4 to +5.1mA
Output bias voltage +4.75 to +9.20VDC
Electrical isolation Case isolated
