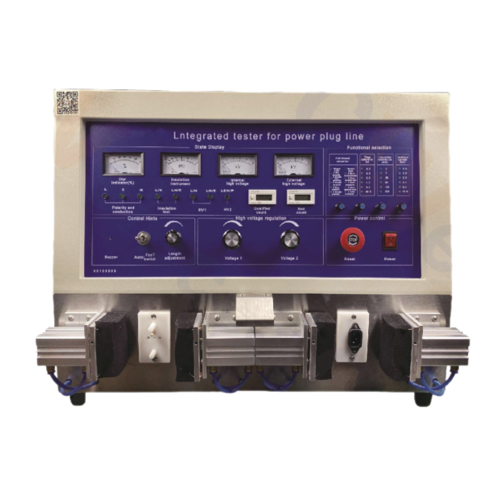

JCW JCW-Q02 Single / Double Power Supply Cord Tester (0-5KV)
生産者: JCW Model: JCW-Q02 - 連絡先
Test items: continuity (open circuit), polarity (dislocation), insulation, internal high voltage (core high voltage), external high voltage (exposed copper), relative length
Test methods: Polarity test, jog loop type, single head non-polarity test, induction and jog loop type, parallel/cross-function
Internal/external high voltage 0-5KV independent adjustment
Single-head cable relative length detection function
Qualified and defective automatic indication, counting function
Various specifications and different wires can be tested through the function switch
Insulation setting value: 2, 7, 20, 50, 100, 200ΜΩ
Leakage current setting value: 0.5, 1.0, 3.0, 5.0, 10mA
Insulation test voltage: DC500V
