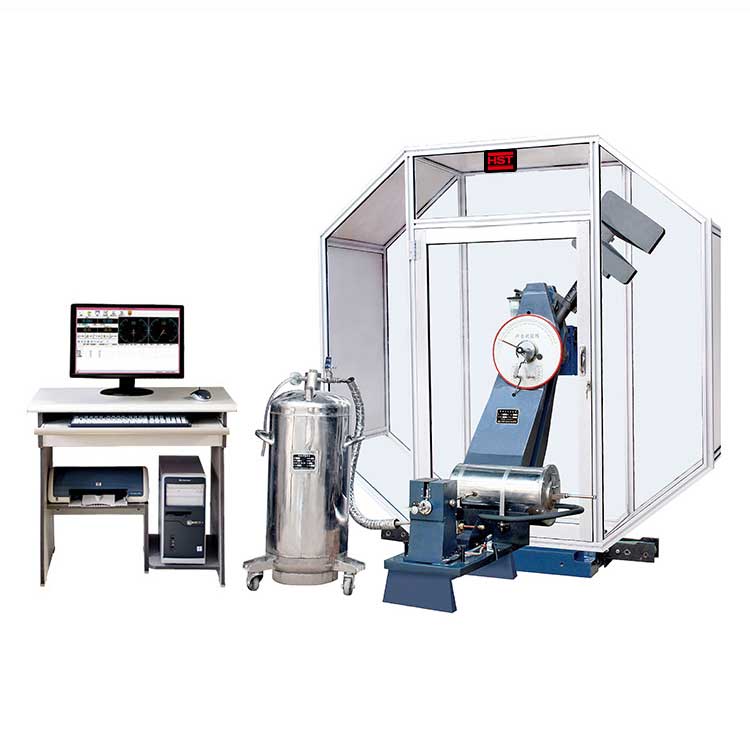

HST JBDW-300C Computer Control Low-temperature Automatic Impact Testing Machine (300J, 5.2m/s)
生産者: HST Model: JBDW-300C 品物を保証します: 12 Month - 連絡先
Max. impact energy: 300J
The distance between the pendulum shaft and impact point: 750mm
Impact speed: 5.2m/s
Raised angle: 150°
Standard span: 40+0.2mm
Round angle of the jaw: R1-1.5mm
Round angle of impact edge: R2-2.5mm,R8±0.05(special order)mm
Angle accuracy: 0.1°
Standard specimen dimension: 10mm×10(7.5/5)mm×55mm
Thickness of impact knife: 16mm
Dip angle of supporting surface of supports: 11°
Cooling way: liquid nitrogen refrigeration
Capacity of sample box: 10
Range of low temperature: room tempeature --60°c/80°c
Range of low temperature: fluctuation ±0.5°C grades 1°C
Speed of sending specimen: ≤2S
Power supply: 3phs, 380V, 50Hz Or 220V,60Hz
