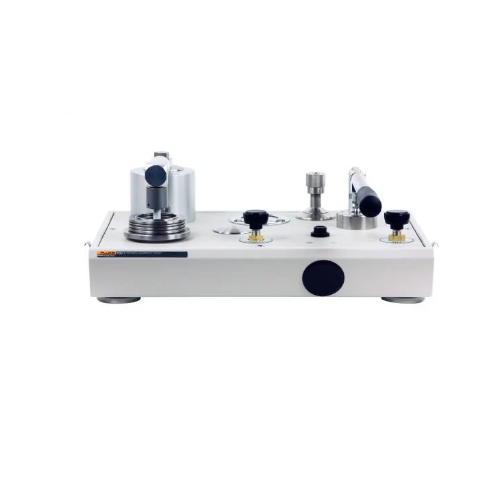

Fluke (Calibration) P3013-7-P 負荷式圧力校正表
生産者: Fluke (Calibration) Model: P3013-7-P - 連絡先
Accuracy: ±0.015% of reading (±0.008% optional)
Standard weight material: Series 3 non-magnetic austenitic stainless steel
Weight density: 7.8 g/cm³
Optional fractional weights: Solution heat-treated aluminum
Weight density: 2.7 g/cm³
General
Test port adaptors: 1/8, 1/4, 3/8, and ½ NPT or BSP
Instrument weight: 24 lbs
Instrument size (W x D x H): 17.5 x 12 x 8.5
Mass set weight (typical): 65 lbs
Minimum Standard Weight Increments: 2 inH2O, (10 mbar)
Built-in Hand Pumps:
Pressure mode:
Max pressure 300 psi (20 bar)
Vacuum mode: To 90% vacuum
Operating Fluid for Liquid Lubricated Models:
55-655: Mineral oil (standard)
Krytox: For oxygen-safe applications (optional)
Options: PressCal Software, Krytox
