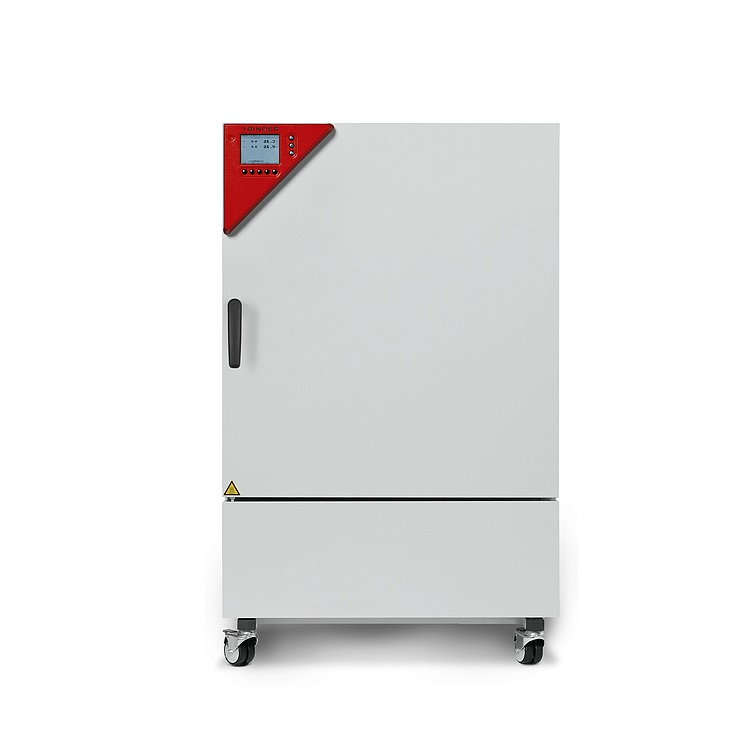

Binder KBWF 240 Growth Chambers with Light and Humidity

Performance Data Temperature:

Temperature range with 100% illumination [°C]: 10…60

Temperature range without illumination cassettes [°C]: 0…70

Performance Data Climate:

Humidity range with illumination cassettes, with illumination [% RH]: 10…75

Humidity range without illumination [% RH]: 10…80

Temperature range with 100% illumination [°C]: 10…60

Temperature range without illumination cassettes [°C]: 10…70

Lightdata per Illumination Cassettes:

Arabidopsis lamps [lx]*: 11000

Arabidopsis lamps [W/m²]*: 32

Daylight tubes [lx]*: 9000

Daylight tubes [W/m²]*: 24

Fluora® growth lamps [lx]*: 7500

Fluora® growth lamps [W/m²]*: 23

Electrical data:

Nominal power [kW]: 2.4

Phase (Nominal voltage): 1~

Power frequency [Hz]: 50

Rated Voltage [V]: 200…240

Unit fuse [A]: 16

Doors:

Inner doors: 1

Unit doors: 1

Housing dimensions not incl. fittings and connections:

Depth net [mm]: 800

Height net [mm]: 1465

Width net [mm]: 925

Internal Dimensions:

Depth [mm]: 485

Height [mm]: 785

Width [mm]: 650

Measures:

Interior volume [L]: 247

Load per rack [kg]: 30

Net weight of the unit (empty) [kg]: 214

Permitted load [kg]: 100

Wall clearance back [mm]: 100

Wall clearance sidewise [mm]: 100

Environment-specific data:

Energy consumption at 37 °C and 75 % RH [Wh/h]: 760

Sound-pressure level [dB(A)]: 53

Fixtures:

Number of illumination cassettes (std./max.): 2/2

Number of shelves (std./max.): 2/7
