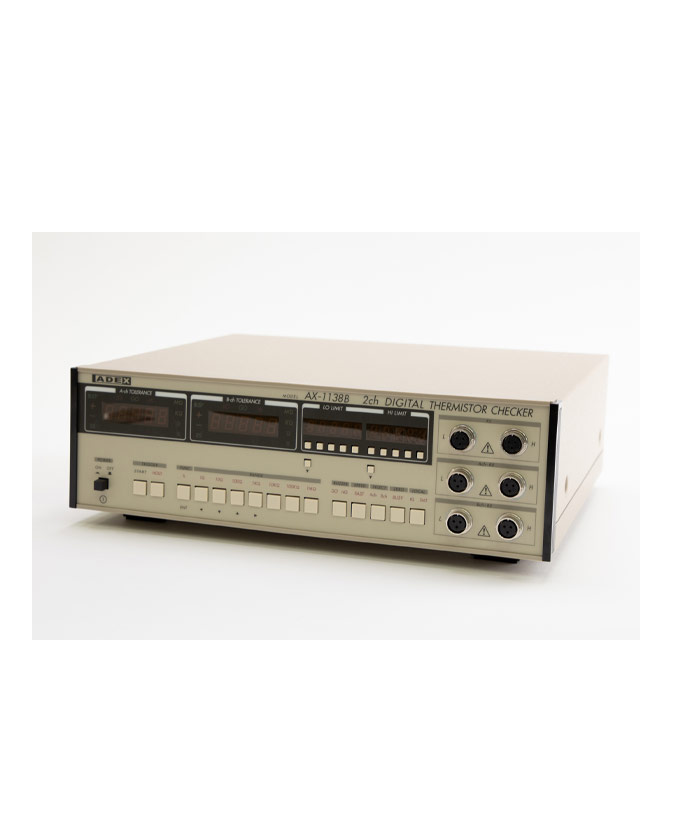

ADEX AX-1138B Digital thermistor checker (1Ω ~ 1MΩ)

Range: 1Ω/ 10Ω/ 100Ω/ 1kΩ/ 10kΩ/ 100KΩ/ 1MΩ

Measuring current: 100mA/ 10.0mA/ 10.0mA/ 1.00mA/ 100μA/ 10.0μA/ 1.00μA

Measurement integration time: [Slow] ：AC1～10 cycles, [Fast]：0.1mS～99.9mS

Sampling time Free run：5 times per second [Slow], 10 times per second [Fast]

 External control：Measurement integration time＋(1～10mS) [Differs from range], The fastest about 1mS

Contact check: Selection setting of OFF・PRE・AFT・ALL, Check determination：47Ω±10Ω (I-V between the terminals)

Comparator set range:

[Resistance measurement]：0～15000 count both for HI and LO (Resistance range＝10000 count)

 [% Measurement]：±0.00％～＋50.00％ both for HI and LO (±5000 count)

Display comparator decision: Lo/GO/Hi judgment to indicate LED on each Rx1, Rx2, Buzzer setup

Machine interface control signal (Connector：57-40240 Equivalent)
Input：External start, External hold

Output：total 14 pcs, Open collector output (max. 40V, 100mA)

Judgment output：RxA・RxB＝LO/GO/HI/CE, Rs＝NG

Status output：EOC, RxA・RxB INDEX, Preliminary 2ch

RS-232C communication: Asynchronous, Baud rate：4800～38400bps, Dsub25S

Operation condition [Temp.]: ＋5*C～＋40*C [Humidity] less than 85％ (Disabled when condensation)

Power supply: AC85V～265V , 50/60Hz, about 60VA

Outer dimension: about 333 (W) ×99 (H) ×300 (D) mm (excluding protruding parts such as rubber legs, etc.)

Weight: about 4kg
