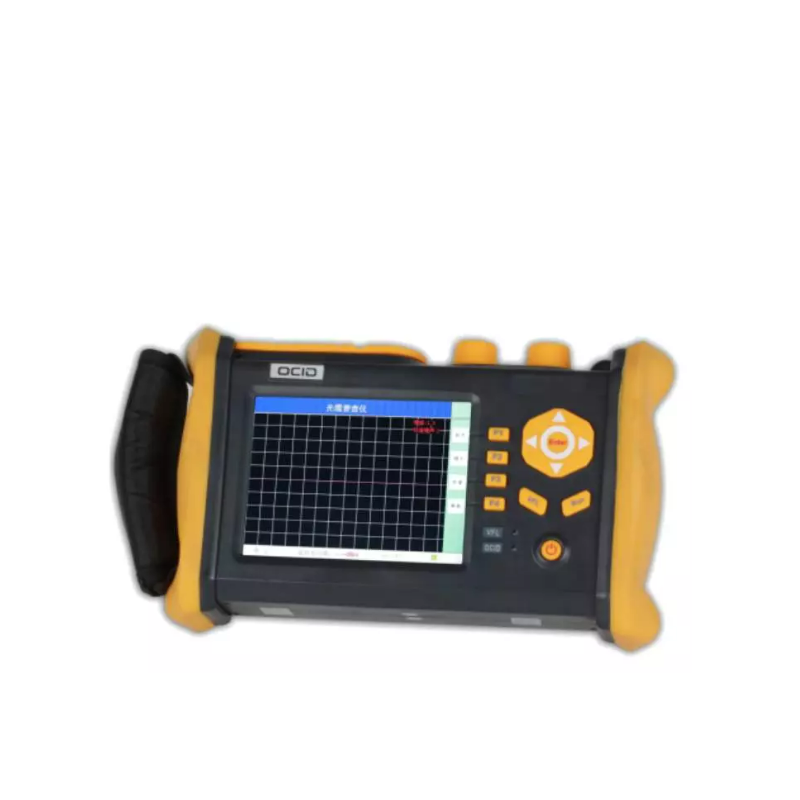

3S Telecom OCID-50A 光ケーブル識別子 (1550nm, -3dBm)
生産者: 3S Telecom Model: OCID-50A - 連絡先
Fiber Number: single fiber
Wavelength: 1550nm
Min. Output Power: -3dBm
Max. Distance: 50km
SNR: >40dB
VFL Distance: 10km
Fiber Type: SM
Optical Connector: FC/APC
Display: 5.6 inch touch screen
Input Mode: TIF touch screen + button
Output Mode
video: active display of real-time waveform
audio: dual channel audio output
Power Supply: DC12V/5A
Lithium Battery: 7.4V, 7.5Ah, continuous working time ≥30h
Power: ≤4.5w
Dimension: 255H*155W*72L mm
Net Weight: 1.5kg (including battery)
Operating Temperature: 0 to +50°C
Storage Temperature: -20 to +70°C
