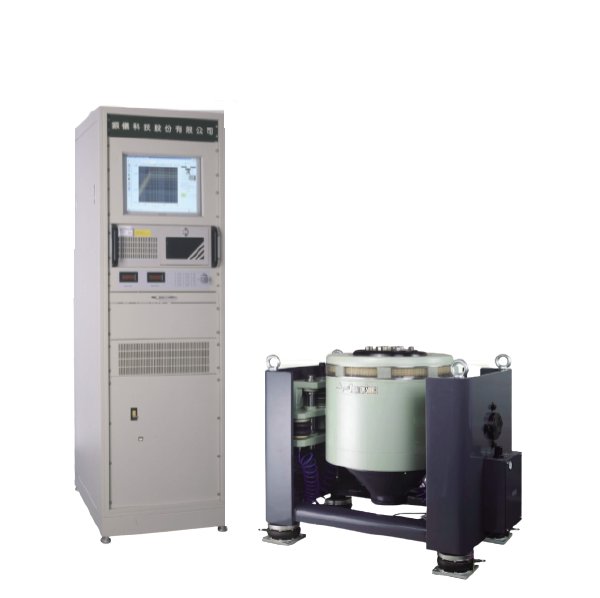

Vibsource VS-200-40 Vertical Type Vibration Tester (1~2500Hz, 140kg)
Manufacturer: Vibsource Model: VS-200-40 Origin: Taiwan Guarantee: 12 Month - Contact
Rated sine/random force (KN): 2
Shock force (KN): 4
Frequency range
- Bare table (Hz): 1-2500
- Horizontal table (Hz): Depend on the size of slip table
Max acceleration
- Bare table: 25G
- Horizontal table (G): depends on the mass of slip table
Max. Velocity (m/sec): 1.5
Max. Displacement (p-p) (mm): 40
Moving element mass (kg): 8
Maximum payload: 140kg
Vertical shaker weight (kg): 450
Vertical shaker dimension WxDxH(cm): 76x62x90
Power amplifier (kVA): 2
Power requirements (kVA): 5.5
Weight (kg): 200
Rack dimension WxDxH(cm): 56x75x175
Cooling method: Forced air
Blower type: TEFC
Weight: 30kg
Dimension WxDxH(cm): 40x40x80
Details
- Quality Engagement
- Easy change and return
- Delivery Avaliable
- Favorable payment
