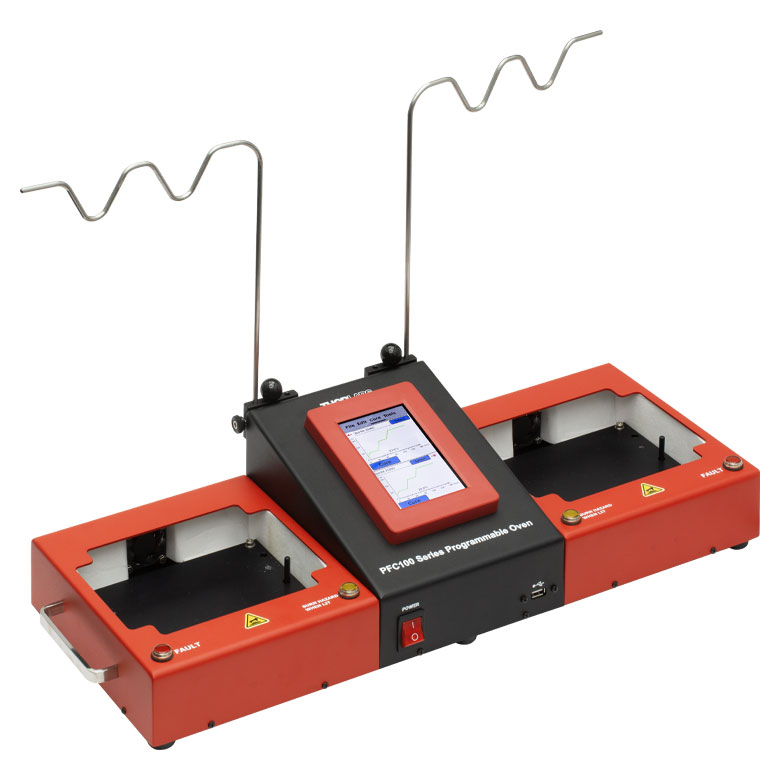

THORLABS PFC121 Programmable Fiber Connector Epoxy Curing Ovens (Double Bay, 120 VAC)
Manufacturer: THORLABS Model: PFC121 - Contact
Compatible Connectors: FC/PC, FC/APC, SMA, ST®(a)/PC, SC/PC
Oven Bays: Two
Connector Capacity: 72
Max Temperature: 150°C (302°F)
Temperature Accuracy: ±1.5 °C
Power Consumption: 500 W (Double Bay)
Max # of Curing Profiles: 99
Max # of Steps: 50
Temperature Logging: 1 min. Increment CSV Format Accessible Through USB
Operating Conditions: 15 to 30 °C, 0 - 85% RH (Non-Condensing)
Storage Conditions: -40 to 80 °C, 0 - 95% RH (Non-Condensing)
Power Source: 90-130 VAC @ 47-63 Hz
Dimensions (W × H × D): 24.88" x 15.10" x 9.72" (631.8 mm x 383.6 mm x 247.0 mm)
Mass (Weight): 10 kg (22 lbs)
(a) ST® is a registered trademark of Lucent Technologies, Inc.
