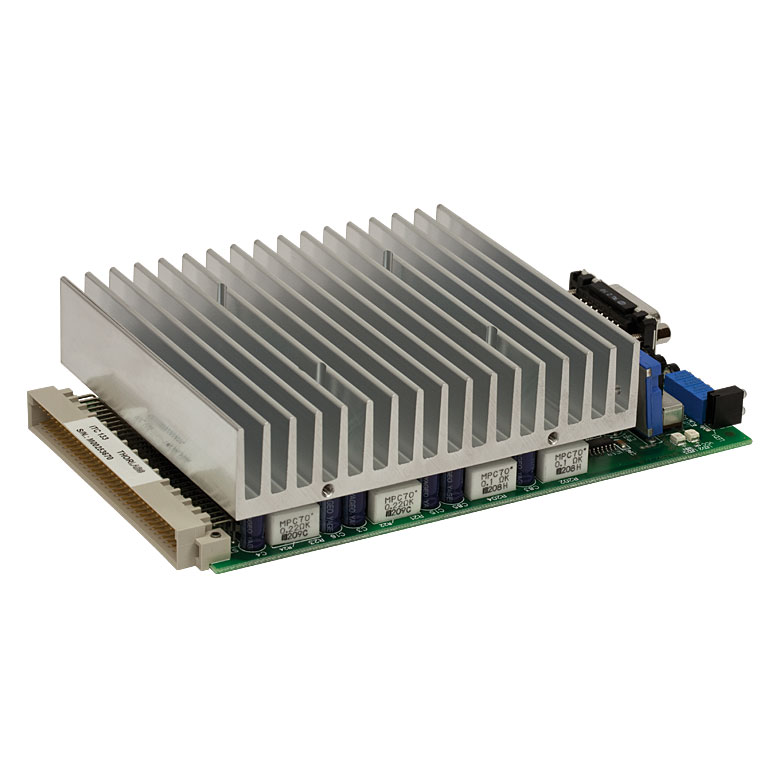

THORLABS ITC102 OEM Laser Diode & Temperature Controllers (±200 mA, 12 W)

Current Control

Display Laser Current On: LED

Trim Potentiometers (15 Turn): ILD, IPD Resp. PLD, ILD,LIM

Control Range of Laser Current: 0 to ±200 mA

Compliance Voltage: >4 V

Setting Accuracy / Repeatability (Full Scale): ±2% Typical / ±0.1%

Noise (10 Hz to 10 MHz, rms): <2 µA

Drift (30 min, 0 to 10 Hz, Typical): <20 µA

Temperature Coefficient: <50 ppm/°C

Power Control

Control Range Photo Diode Current: 5 µA to 2 mA

Accuracy / Repeatability (Full Scale): ±2% Typical / ±0.1%

Photodiode Reverse Bias Voltage: 0 V or 5 V

Current Limit

Setting Range: 0 to >200 mA

Setting Accuracy / Repeatability (Full Scale): ±2% Typical / ±0.1%

Analog Modulation Input

Input Resistance: 10 kΩ

Modulation Coefficient, CC: 40 mA/V ± 5%

Small Signal 3 dB Bandwidth, CC: DC to 200 kHz

Modulation Coefficient, CP: 0.4 mA/V ± 5%

TTL Modulation Input

Rise/ Fall Time: <10 µs

TTL Control Input: LD ON

Measurements and Control Outputs

Analog Measurement Values: ILD, IPD, ILD,LIM

Measurements Outputs: 0 to ±5 V

Measurements Accuracy (Typical, Load > 500 kΩ): ±2%

TTL Control Outputs: LD ON, LIMIT

General Data

Supply Voltage / Current: ±12 to ±15 V / 2.3 A

Operating Temperature: 0 to 40°C

Storage Temperature: -40°C to 70°C (Non-Condensing)

Warm-Up Time for Rated Accuracy: 10 min

Dimensions (W x H x D): 100 mm x 42 mm x 160 mm (Eurocard)

Weight: < 0.7 kg

(a) The total combined current for the ITC133 is limited by the total thermal dissipation loss. Optimized cooling by fan or a larger heat sink allows 3 A LD and 3 A TEC at the same time, provided the power supply provides 6.1 A

All technical data are valid at 23 ± 5 °C and 45 ±15% relative humidity (non-condensing).
